RZ series DC rectangle laser sensor

RZ series laser sensor, laser light source, Ф2.5mm light spot, mini detected object upto Ф0.1mm, narrow and small light beam, can be used on gap detection, small hole detection, line detection etc. Through-beam or Reflective type for choice, NPN or PNP, NO.NC.

Detailed description

Model	RZ-D200□	RZ-T10K□
Sensing Type	Reflective Type	Through-beam Type
Detected Distance	200mm	10M
Output Method	NPN.NO/NC / PNP.NO.NC
Response Frequency	1kHz
Ambient Operating Illumination	Incandescent lamp: ≦3000Lux ; Sunshine: ≦10000 Lux
Protection loop	Reverse polarity protection, short-circuit protection
Operating Voltage	10~30 VDC
Current Consumption	30mA Max
Load Current	100mA Max
Vibation Resistance	10~55Hz; 1.5mm X,Y,Z direction lasting 2 hours
Shock Resistance	500m/s (Approx.50g) / X,Y,Z direction lasting 2 hours
Residual Voltage	≦1 VDC
Ambient Humidity	35%-85% RH
Operating Temperature	-25℃~+70℃ (no-freezing), storage: -30℃~+80℃
Housing	ABS
Protection Degree	IP65
Wiring Method	Pre-wire Ф3.8*2M/3-wires	Pre-wire Ф3.82M/3-wires Pre-wire Ф3.82M/2-wires
Weight	Approx.60g	Approx.115g

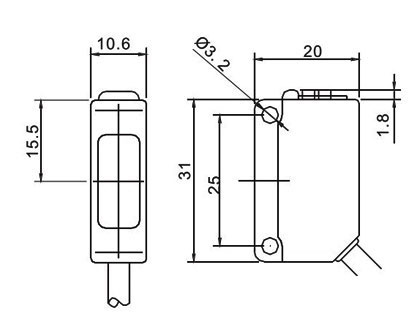

Dimension (Unit:mm)

Dimension of RZ series laser sensor
