Mark sensor color detection

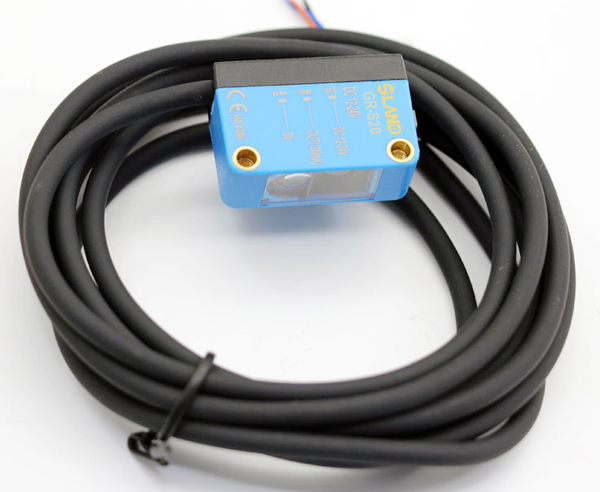

Mark sensor color detection RGB-S20, GR-S20, One-key setting, easy handle mark detection, R.G.B. light source and single light source optional, economic version.
Detailed description


  • 1. RGB or Green colors light spot;
  • 2. Compact size, One key setting;
  • 3. 8~20mm sensing range, 0.5ms response time;
  • 4.Simple setting, economic mark detection solution.




Models Guide:



Sensing Type Connecting Sensing Range Outputs Models
 RGB-S20 mark sensor 2M cable type 8~20mm NPN.NO.NC RGB-S20N
PNP.NO.NC RGB-S20P
GR-S20 mark sensor 2M cable type 8~20mm NPN.NO.NC GR-S20N
PNP.NO.NC GR-S20P
PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Models RGB-S20 GR-S20
Sensing range 8~20mm
Light source R.G.B. light source Green light source
Response time 0.5ms
Operating voltage 12~24VDC (P-P±10% Max)
Control outputs Max.100mA @ 24VDC
Protection Reverse current, overcurrent, overvoltage protection
Working environment Incandescent lamp: 50,000Lux
Daylight: 20,000Lux
Power loss Max.0.5W @ 24VDC
Operating environment Working: -25~ ±55 ℃ , storage: -40~ ±70 ℃, no icing/dew
Working: 35~ 85% RH , storage: 35~ 85% RH
Insulating resistance 20MΩ min. (DC500V)
Vibration 10-55Hz double-amplitude, 1.5mm X, Y, Z each directions last for 2 hours
Impact Endurance 500m/s2 X, Y, Z each directions three times
Protecting IEC-IP65
Material Housing ABS
Sensing surface --
Weight approx.50g included 2M cable
Accessories --

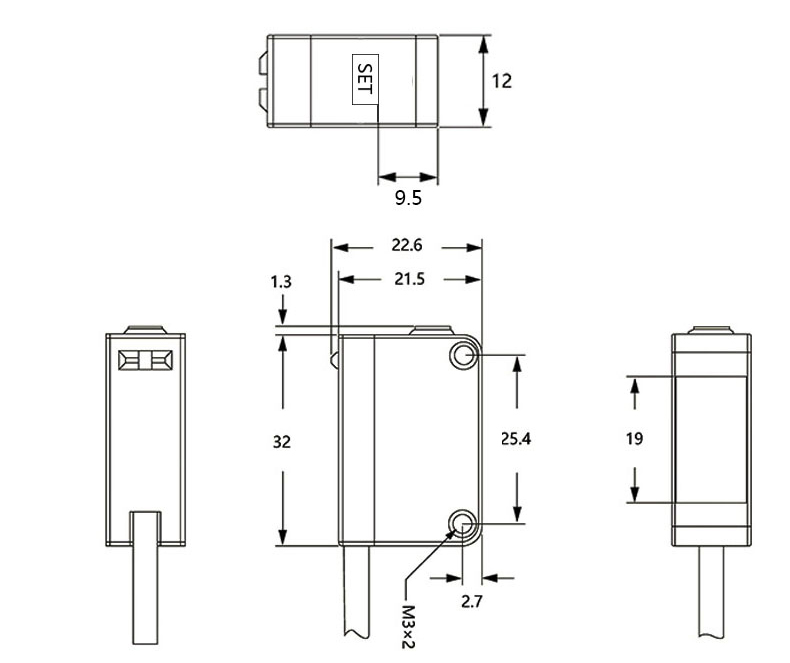

RGB-S20 color sensor dimension





View more detail from the link below

RGB-S20 Color sensor
