Light curtain LC20 series

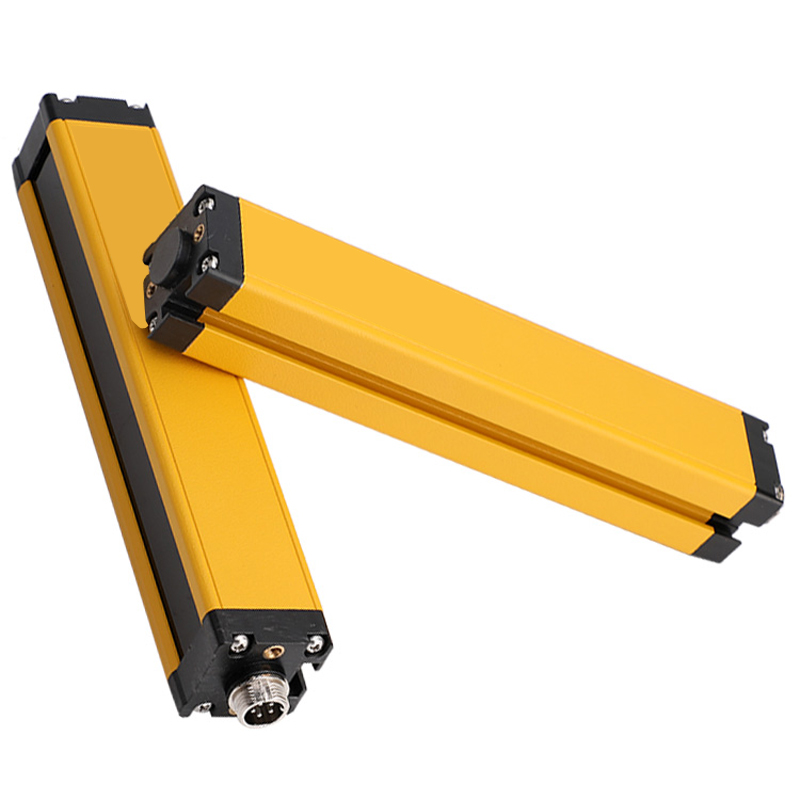

Light curtain LC20 series, Universal type models,suitable for most of applications, 10mm/20mm/30mm/40mm light gap for option.

Detailed description

Models Guide:

Sketch	Model	Distance between light beams	OutPut	Wiring
	LC10-□□	10mm	NPN.NC	2.5M cable
	LC10-□□P		PNP.NC
	LC10-□□	20mm	NPN.NC	2.5M cable
	LC10-□□P		PNP.NC
	LC20-□□	30mm	NPN.NC	2.5M cable
	LC20-□□P		PNP.NC
	LC40-□□	40mm	NPN..NC	2.5M cable
	LC40-□□P		PNP.NC

Specifications:

Models NPN	LC10-□□	LC20-□□	LC30-□□	LC40-□□
Models PNP	LC10-□□P	LC20-□□P	LC30-□□P	LC40-□□P
Light beam numbers	6-148PCS	6-148PCS	4-98PCS	4-74PCS
Distance between light beams	10MM	20MM	30MM	40MM
Height Max. sensing	Distance between two light beams* ( Light beam number - 1 )
Sensing distance	0.1-3meter or 0.1-5meter
Min. sensing target	Φ30mm Non-transparent objects
Working voltage	DC 12-24 ±10%
Power consumption	3-8Watt
Response time	Less than 10ms
Safty leavel	IEC61496-1/2

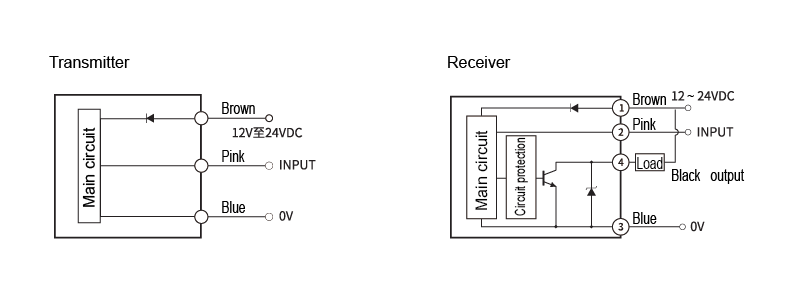

Outputs	NPN/PNP/Relay
Outputs currents	200mA
Circuit protection	Reverse connection protection, overcurrent protection, overvoltage protection
Indicator of emitter	Power ON: Red LED
Indicator of reciever	Power LED: Red
	Output LED: Yellow
	larm indicator: When the power is ON and the self-test, the output loop is found if disconnected, and the green LED flashes.
Main materials	Shell: aluminium alloy ，Cap: ABS , Bracket: Cold rolled steel plate
Protection	IP65/IP67 (optional)
Operating ambient temp.	-10°C～+55°C(No freezing allowed )
Operating ambient humidity	15-85% RH
Operating ambient anti lights	Sunlight: 30,000 Lux, Incandescent lamp: 3,000 Lux
Anti-vibration ability	Frequency 10-55Hz, Amplitude: 0.75mm, 2 hours in XYZ direction
Anti-shock ability	Acceleration 300m/s², 2 hours in XYZ direction
Storage conditions	10°C～+70°C(No freezing allowed )
Synchronization mode	Optical or line synchronization (optional)
