S-11 series potentiometer fiber amplifier

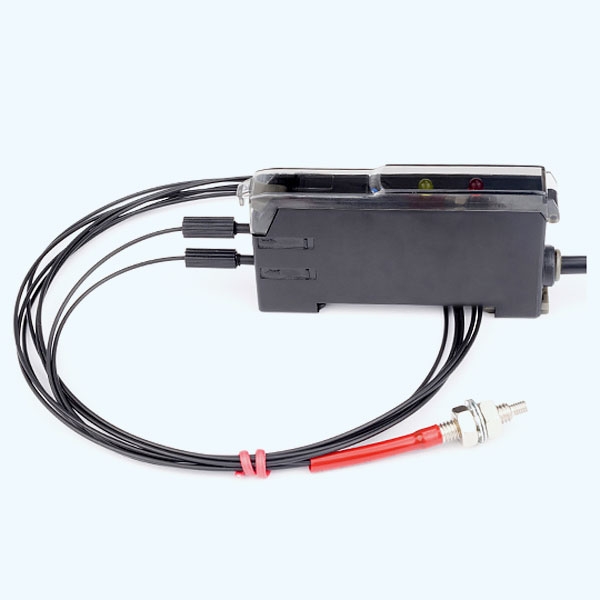

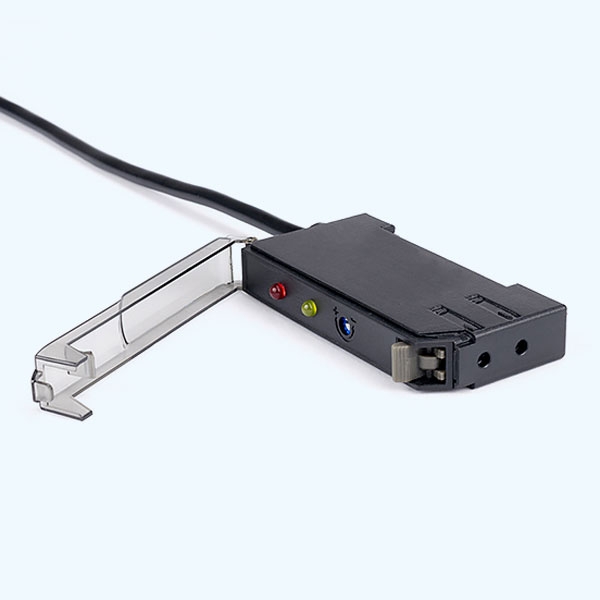

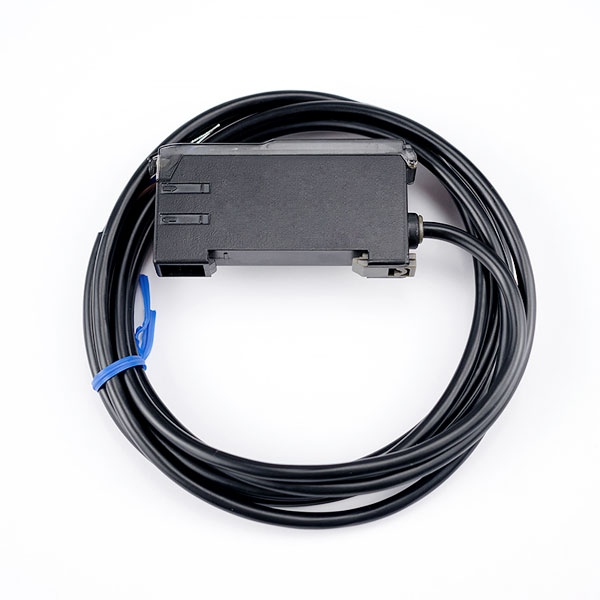

S-11 series potentiometer fiber amplifier, it's a low cost and very easy for setting parts. it with potentiometer for adjusting sensitivity, LED light display working status.

Detailed description

1. Stuitable for universal application, potentiometer adjustment.
2. Low cost, high-performance.

Models Guide:

Models	S-11	S-11P
Output	NPN.NO.NC	PNP.NO.NC

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC, offered M8 connector type also.

Specifications:

Light Source	Red LED (625nm)
NPN OutPut	S-11
PNP OutPut	S-11P
Supply voltage	12-24VDC ±10% ripple P-P10% below
Current consumption	Less than 960nW 40mA or less
Detection output	NPN output type: NPN open-collector transistor Maximum sink current: 100mA Voltage：30VDC or less（when detecting or between 0 to 30 VDC) Residual voltage: 1.0V or less (current 50mA) ,4 V (current 50mA)
Detection output	PNP output type: PNP open collector transistor Maximum flow current：100mA Voltage：30VDC or less（when detecting or between 0 to 30 VDC) Surplus voltage: 2.0 V or less (current 100 mA),1.0 V (current 16 mA)
Output operation	Detecting ON or not detecting ON , ON/OFF switch choice.
Short circuit protection	Polarity protection / Circuit protection
Indicator	Power light: green, Output light: orrange
Sensitivity function	8 circles turn adjusting
Loading current	100mA Max.at DC 24V
Isolating impedance	20M Ω min.(DC500V)
Insulation compression	AC500V 60Hz for 60sec
Protection level	IP63
Reaction time	400μs below
Detection distance	Reflex： 100mm through-beam：400mm
Reaction time	0.5ms or less（（Resistance interference function 0.7ms or less）about 250μs
Timer function	about 40ms OFF Delay time
Operating environment temperature	-10~+50℃ （no-freezing,no-dew） Storage：-20~+70℃
Operating environment humidity	35~85%RH , Storage：-：35~85%RH
Material	Shell: heat-resistant ABS, cover: polycarbonate, optical fiber fixed rod: PPS
Accessories	--
