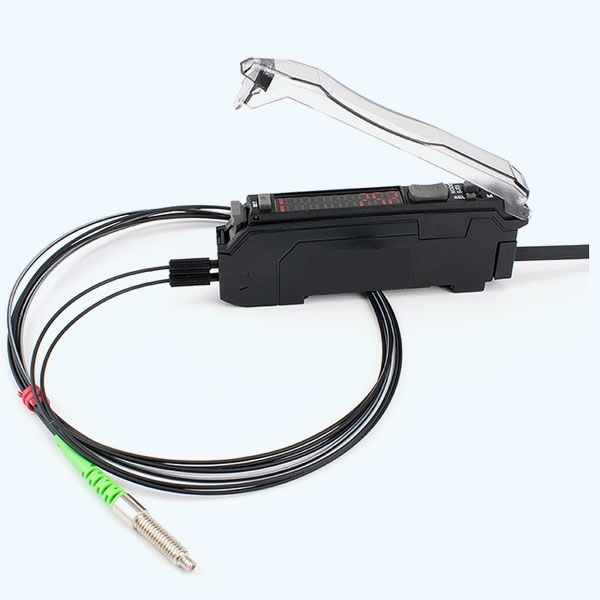

S-201series Dual-digital display fiber amplifier

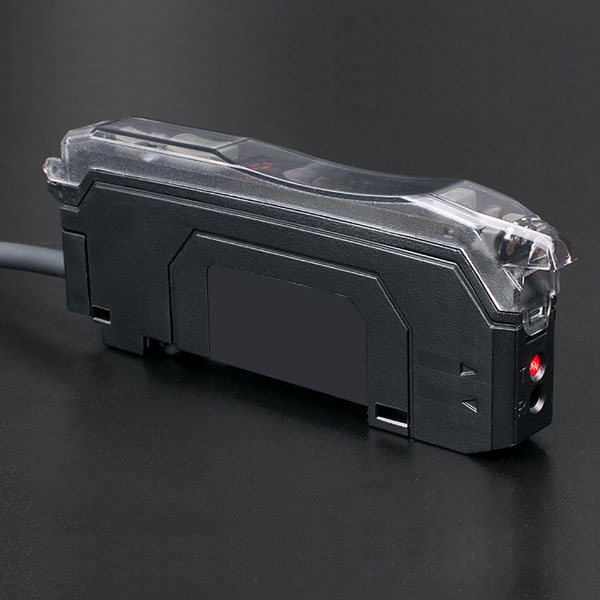

Dual-digital display fiber amplifier S-201series, good functions to be showed on many applications.Two color and 8 bit digital LED display, you can set sensor much easier, M8 connector type also offered.

Detailed description

1. Stuitable for universal application, potentiometer adjustment.
2. Low cost, high-performance.

Models Guide:

Models	S-201	S-201P
Output	NPN.NO.NC	PNP.NO.NC

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC, offered M8 connector type also.
Blue light source also offered too, and can be customized.

Specifications:

Light Source	Red LED
NPN OutPut	S-201
PNP OutPut	S-202P
Supply voltage	12-24VDC ±10% ripple P-P10% below
Current consumption	Less than 480nW 40mA or less
Detection output	NPN output type: NPN open-collector transistor Maximum sink current: 100mA Voltage：30VDC or less（when detecting or between 0 to 30 VDC) Residual voltage: 1.0V or less (current 50mA) ,4 V (current 50mA)
Detection output	PNP output type: PNP open collector transistor Maximum flow current：100mA Voltage：30VDC or less（when detecting or between 0 to 30 VDC) Surplus voltage: 2.0 V or less (current 100 mA),1.0 V (current 16 mA)
Output operation	Detecting ON or not detecting ON , ON/OFF switch choice.
Short circuit protection	Polarity protection / Circuit protection
Indicator	Power light: green, Output light: orrange
Sensitivity function	Adjusted via button setting
Loading current	100mA Max.at DC 24V
Isolating impedance	20M Ω min.(DC500V)
Insulation compression	AC500V 60Hz for 60sec
Protection level	IP63
Reaction time	P-1: 200μs P-2:400μS P-3: 1.6ms P-4: 6.4ms
Detection distance	Reflex： 300mm through-beam：2000mm
Reaction time	0.5ms or less（（Resistance interference function 0.7ms or less）about 250μs
Timer function	1ms ~9999ms output delay adjustment
Operating environment temperature	-10~+50℃ （no-freezing,no-dew） Storage：-20~+70℃
Operating environment humidity	35~85%RH , Storage：-：35~85%RH
Material	Shell: heat-resistant ABS, cover: polycarbonate, optical fiber fixed rod: PPS

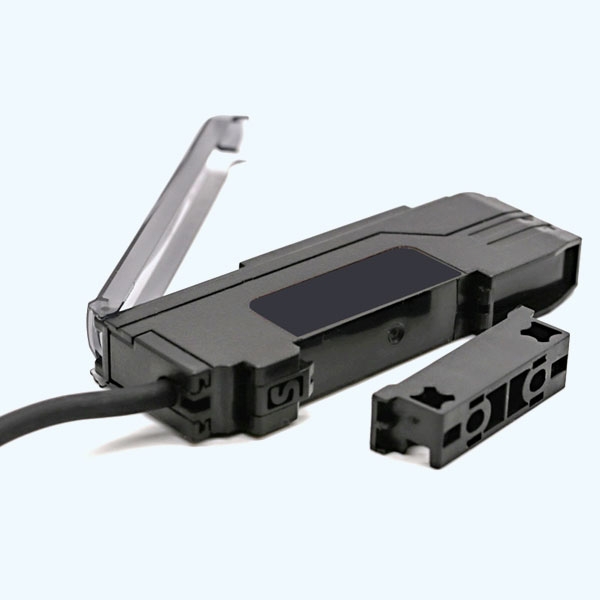

Accessories	Stent for install

View more detail from the link below

PDF of S-201 series>>
