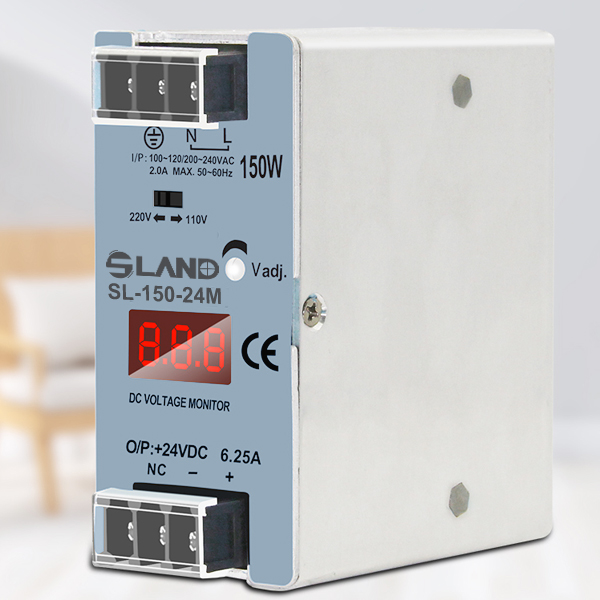

150W switching power supply

150W switching power supply, circuit protection, overload protection, overvoltage protection, DC output 12V, 24V optiona, LED power indicator.

Detailed description

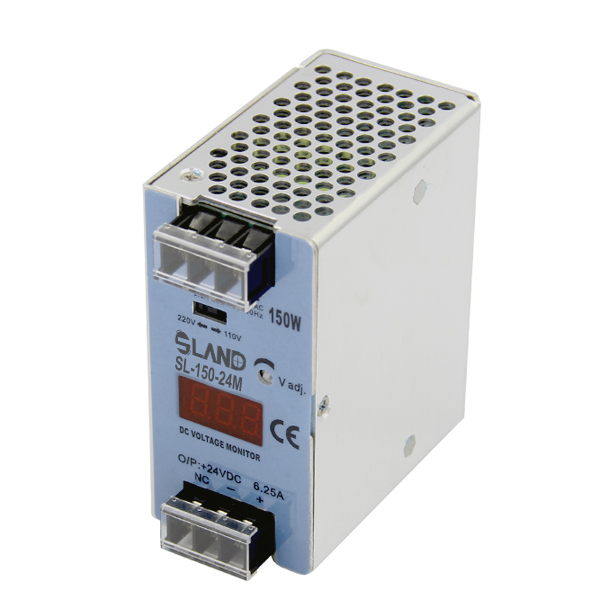

Models	SL-150-12M	SL-150-24M
Output voltage&currents	12V , 0~12.5A	24V , 0~6.25A
Rated ouput current	12.5A	6.25A
Adjustable range of output voltage	11.4~13.2V	20.5~26.5V
Efficiency	83%	85%
Output voltage tolerance	±1%	±1%
Ripple and noise	120MVP-P	240MVP-P
AC input voltage range	85~132VAC/176~264VAC or 248~373VDC 47~63Hz
Surge current during cold start	10A / 115V , 20A / 230VAC (cold-start current)
AC input current	3A / 115VAC , 1.5A / 230VAC
Leakage current	<2mA / 240VAC
Overload protection	110%-150%
	Protection mode: cut off output and reset automatically
Over voltage protection	13.8~16.2VDC	27~30VDC
	Protection mode: cut off output and reset automatically
Work temperature humidity	-10℃~+50℃， 20%~90%RH
Storage temperature humidity	-20℃~+85℃， 10%~95%RH
Shock resistance	10~500Hz, 2G 10min.per time, Duration: 60Min. each shaft
Voltage withstand capacity	I/P-O/P: 2KVAC, I/P-F/G: 1.5KVAC, O/P-F/G: 0.5KVAC,
Insulation Resitance	I/P-O/P , I/P-F/G , O/P-F/G: 100M Ohms/500VDC
Safety Standards	CE
EMC standards	--
*Dimension ( LWH )*	8349100 mm
Weight	0.41KGS

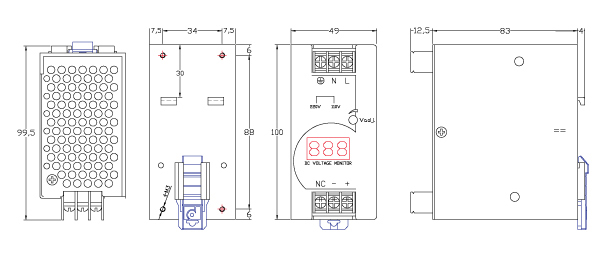

150W_switching_power_supply_dimension
