500W Swiching power supplies

SL-500 SERIES 500W switching power supplies, 12V, 24V, 48V DC outputs, AC changed to DC, LED and digital display.
Detailed description


  • 1. Digital number of output voltage display;
  • 2. Circuit protection, overload protection, overvoltage protection;
  • 3. 500W, DC output 5V, 12V, 24V optional;
  • 4. 100% full load burning test;
  • 5. LED power indicator.



Models SL-500-12M

SL-500-24M

SL-500-48M
Output voltage&currents 12V , 0~41.7A 24V , 0~20.8A 48V , 0~10.4A
Rated ouput current 41.7A 20.8A 10.4A
Adjustable range of output voltage 10.5~14.0V 20.5~26.5V 44.5~51.0V
Efficiency 83% 83% 86%
Output voltage tolerance ±1% ±1% ±1%
Ripple and noise 120MVP-P 240MVP-P 300MVP-P
AC input voltage range 85~132VAC / 176~264VAC or 248~373VDC 47~63Hz
Surge current during cold start 15A / 115V , 30A / 230VAC (cold-start current)
AC input current 9.5A / 115VAC , 4.80A / 230VAC
Leakage current <2mA / 240VAC
Overload protection 110%-150%
Protection mode: cut off output and reset automatically
Over voltage protection 14.0~18.0VDC 27.0~30.0VDC 44.50~51.0VDC
Protection mode: cut off output and reset automatically
Work temperature humidity -10℃~+50℃, 20%~90%RH
Storage temperature humidity -20℃~+85℃, 10%~95%RH
Shock resistance 10~500Hz, 2G 10min.per time, Duration: 60Min. each shaft
Voltage withstand capacity I/P-O/P: 2KVAC, I/P-F/G: 1.5KVAC, O/P-F/G: 0.5KVAC,
Insulation Resitance I/P-O/P , I/P-F/G , O/P-F/G: 100M Ohms/500VDC
Safety Standards CE
EMC standards --

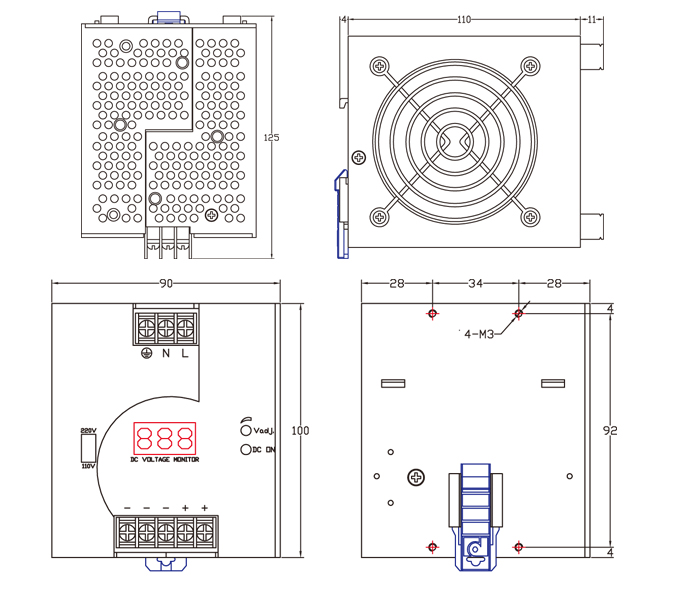

Dimension ( L*W*H ) 100*90*110 mm
Weight 0.8KGS

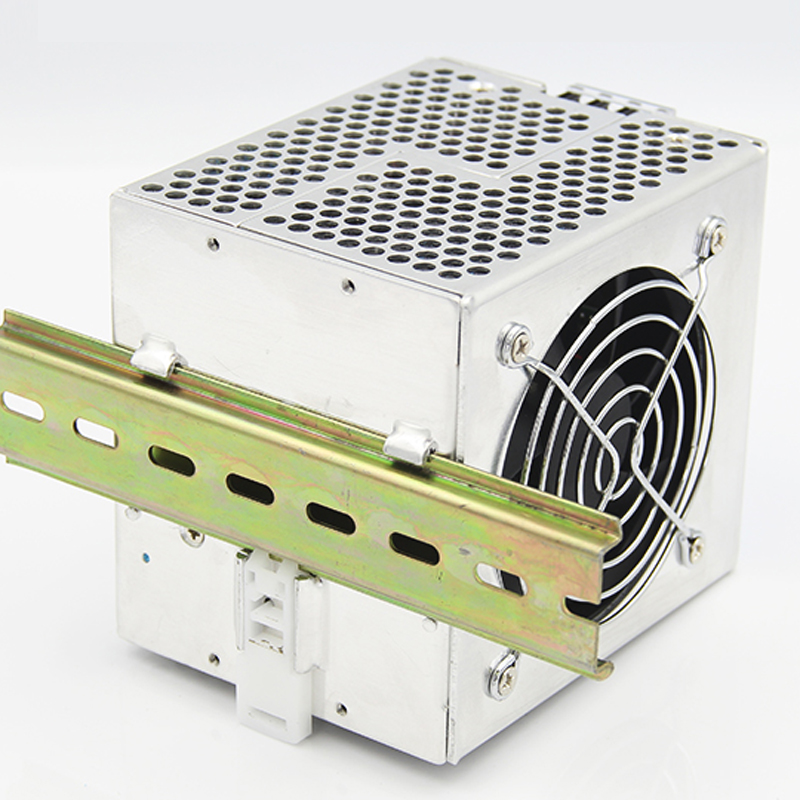

500w_SL-500-24M switching power supplies
