SLUCR Rectangular Ultrasonic sensors
  • SLUCR Rectangular Ultrasonic sensors
  • SLUCR Rectangular Ultrasonic sensors
  • SLUCR Rectangular Ultrasonic sensors

SLUCR Rectangular Ultrasonic sensors

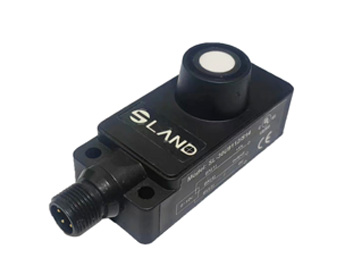

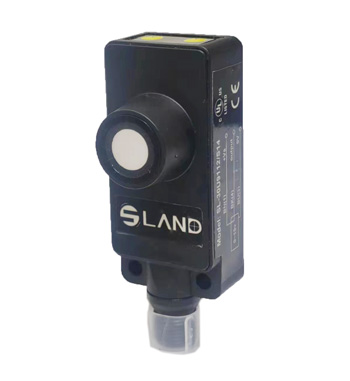

SLUCR Rectangular Ultrasonic sensors, right angle detected, 500mm,1000mm,2000mm sensing distance, diffuse detection, two point setting, switching or analog outputs.
Detailed description


  • 1. Retangular shap right angle ultrasonic sensor;
  • 2. Two points setting, Sensing range can be 500mm, 1000mm or 2000mm
  • 3. Outputs can be NPN, PNP, 5-20mA, 0-5V ect.


Models Guide:

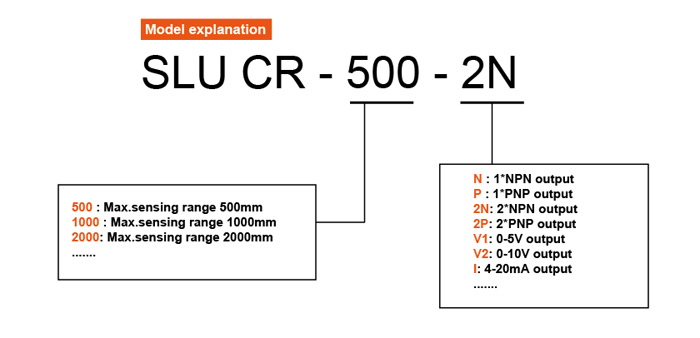

SLU ultrasonic sensor model explanation

Note: models can be known from above model explanation,


Specifications:

Sensing distance 50~500mm 70~1000mm 80~2000mm
Blind area 50mm 70mm 80mm
Working voltage 1) 10~30VDC (NPN or PNP ouput)
2) 15~30VDC (currents or voltage ouput)
Protection level IP65
LED (yellow) 1) Constant lighting: normal working,
2) Flashed: Setting mode
LED (red) 1) Working status: Error
2) Setting status: Not found the sensing target
Outputs (different models) Pls check from model explanation
Ajdustment/setting methods Buttons or wires contacted
Angle 10°±2°
Housing materials Plastic
Connecting H4 (4-PIN) M12 connector / 2M PVC cable
