SLUQR cylindrical ultrasonic sensor
  • SLUQR cylindrical ultrasonic sensor
  • SLUQR cylindrical ultrasonic sensor

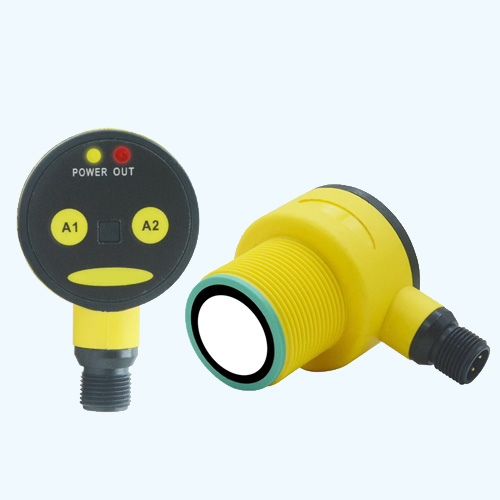

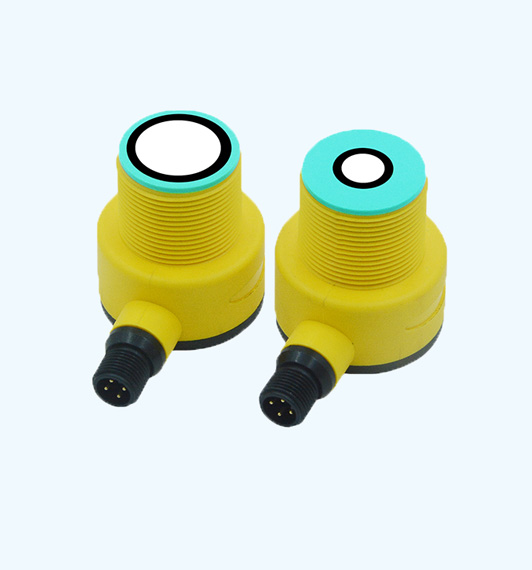

SLUQR cylindrical ultrasonic sensor

SLUQR cylindrical ultrasonic sensor, M18 installation, right angle detection, 500mm, 1000mm, 2000mm sensing range optional, NPN, PNP, 0-10VDC, 4-40mA, 0-10VDC output for choice, OEM supported.
Detailed description


  • 1. Retangular shap right angle ultrasonic sensor;
  • 2. Two points setting, Sensing range can be 500mm, 1000mm or 2000mm
  • 3. Outputs can be NPN, PNP, 5-20mA, 0-5V ect.


Models Guide:

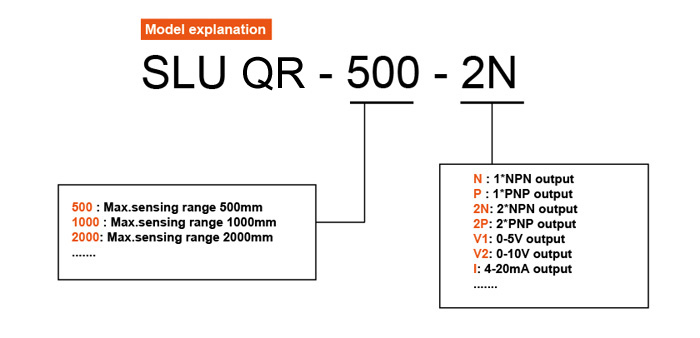

SLUQR ultrasonic sensor model explanation

Note: models can be known from above model explanation,


Specifications:

Sensing distance 50~500mm 70~1000mm 80~2000mm
Blind area 50mm 70mm 80mm
Working voltage 1) 10~30VDC (NPN or PNP ouput)
2) 15~30VDC (currents or voltage ouput)
Protection level IP65
LED (yellow) 1) Constant lighting: normal working,
2) Flashed: Setting mode
LED (red) 1) Working status: Error
2) Setting status: Not found the sensing target
Outputs (different models) Pls check from model explanation
Ajdustment/setting methods Buttons or wires contacted
Angle 10°±2°
Housing materials Plastic
Connecting H4 (4-PIN) M12 connector / 2M PVC cable

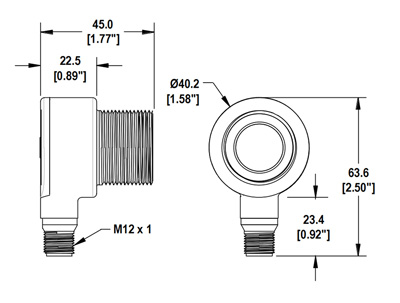

 SLQR_ultrasonic sensor dimension
