S-Q series small indutive position sensor

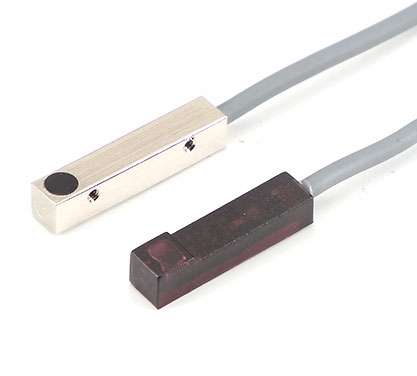

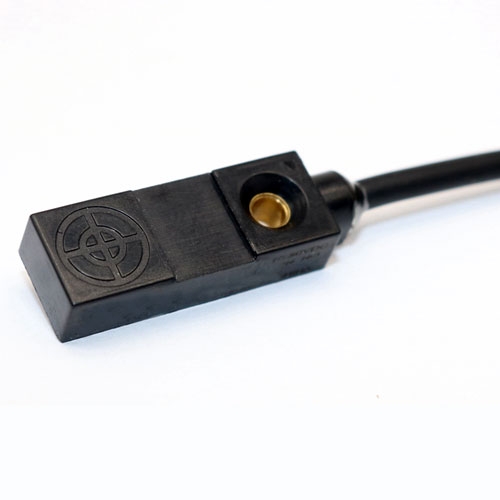

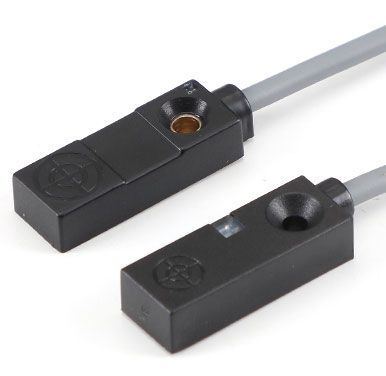

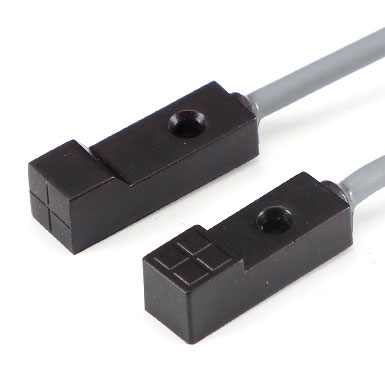

S-Q series small proximity sensors, small size position sensors, it can be connector type, according to the difference of install way and the sensing part, it have many model, anti oil, anti dust, anti water, it can be installed in narrow space, it also can be customized.

Detailed description

1. Small body, not easy to get interference.
2. Good for limited space install and positioning detection.
3. Dustproof, waterproof, different sensing range and sensing ways

Models Guide:

Sensing Type	Connecting	Sensing Range	Outputs	Models
	2M cable type ( M8) 3-wires	1mm (non-shield)	NPN.NO	S-Q5501NO
			NPN.NC	S-Q5501NC
			PNP.NO	S-Q5501PO
			PNP.NC	S-Q5501PC
	2M cable type ( M8) 3-wires	1mm (non-shield)	NPN.NO	S-B5501NO
			NPN.NC	S-B5501NC
			PNP.NO	S-B5501PO
			PNP.NC	S-B5501PC
	2M cable type ( M8) 3-wires	2.5mm (non-shield)	NPN.NO	S-Q882.5NO-F
			NPN.NC	S-Q882.5NC-F
			PNP.NO	S-Q882.5PO -F
			PNP.NC	S-Q882.5PC -F
	2M cable type ( M8) 3-wires	2.5mm (non-shield)	NPN.NO	S-Q882.5NO-T
			NPN.NC	S-Q882.5NC-T
			PNP.NO	S-Q882.5PO -T
			PNP.NC	S-Q882.5PC -T
	2M cable type ( M8) 3-wires	2.5mm (non-shield)	NPN.NO	S-Q102.5NO
			NPN.NC	S-Q102.5NC
			PNP.NO	S-Q102.5PO
			PNP.NC	S-Q102.5PC
	2M cable type ( M8) 3-wires	4mm (non-shield)	NPN.NO	S-Q1004NO
			NPN.NC	S-Q1004NC
			PNP.NO	S-Q1004PO
			PNP.NC	S-Q1004PC

Specifications:

Model	S-Q5501	S-B5501	S-Q882.5*F	S-Q882.5*T	S-Q102.5	S-Q1004
Scanning Distance	1mm	1mm	2.5mm	2.5mm	4mm	4mm
Recommened Distance	0.8mm	0.8mm	2.2mm	2.2mm	3.2mm	3.2mm
Standard Sensing Object	5×5×1(iron)	5×5×1(iron)	8×8×1(iron)	8×8×1(iron)	10×10×1(iron)	10×10×1(iron)
Response Friquency	DC:600Hz/ can custiomize other frequrency
Hysteresis	1O%≤sensing distance
Operating Voltage	DC:10～30VDC±10%/ can do 5V
Current Consumption	DC:≤8mA No—Load
Load Current	DC:30V 200mA Max
Leakage Current	DC:≤1.1mA no-Load
Residual Votage	DC:≤1.0VDC No-load
Operating Temperature	-25°C～+70°C
Material	ABS
Wiring Method	φ3×2M/3-wires, φ4×2M/2-wires
Protection Degree	IP67
