Detailed description
| Model |
M18*1*35mm |
M18*1*55mm |
||
| Install Method | Flush | Non-Flush | Flush | Non-Flush |
| Scanning Distance | 5mm / 8mm | 8mm / 16mm | 5mm / 8mm | 8mm / 16mm |
| Amplifier | Built-in | Built-in | ||
| Recommened Distance | 4mm / 6.4mm | 6.4mm / 6.4mm | 4mm / 6.4mm | 6.4mm / 6.4mm |
| Response Friquency | 1KHz / 500Hz | 500Hz | 1KHz / 500Hz | 500Hz |
| Hysteresis | <15%(Sr) | <15%(Sr) | <15%(Sr) | <15%(Sr) |
| Operating Voltage | DC:10～30VDC±10%/ | |||
| Current Consumption | <10mA | |||
| Load Current | 150mA Max | |||
| Leakage Current | <0.01mA | |||
| Residual Votage | <1.5V | |||
| Operating Temperature | -25°C～+70°C | |||
| Circuit Protections | Max.180mA overload, short-circuit protection | |||
| Shock/vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 | |||
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) | |||
| Material | Copper with nickel coat, PBT | |||
| Wiring Method | PVC φ4×2M/3-wires | |||
| Protection Degree | IP67 | |||

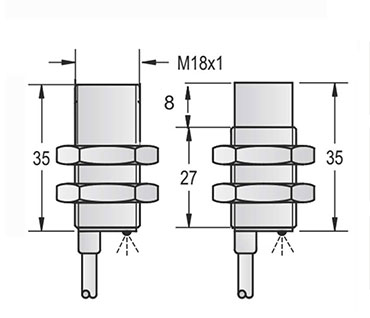

| 35mm Thread version: M18*1*35mm | ||||
| Models |
Sensing Face |
Max. Sensing Range |

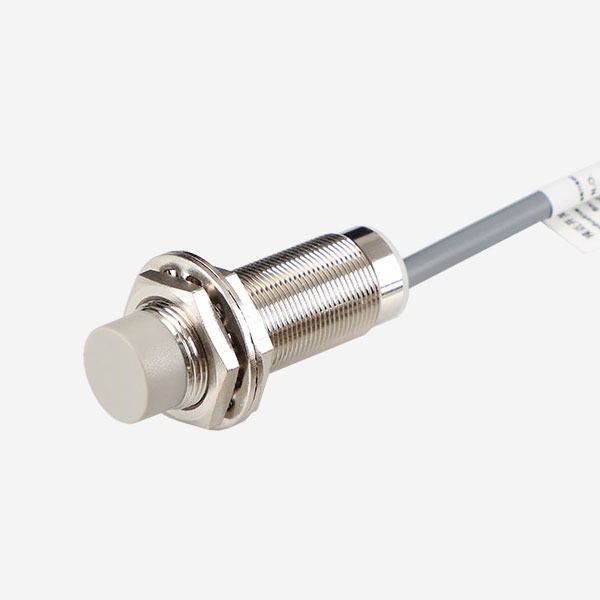

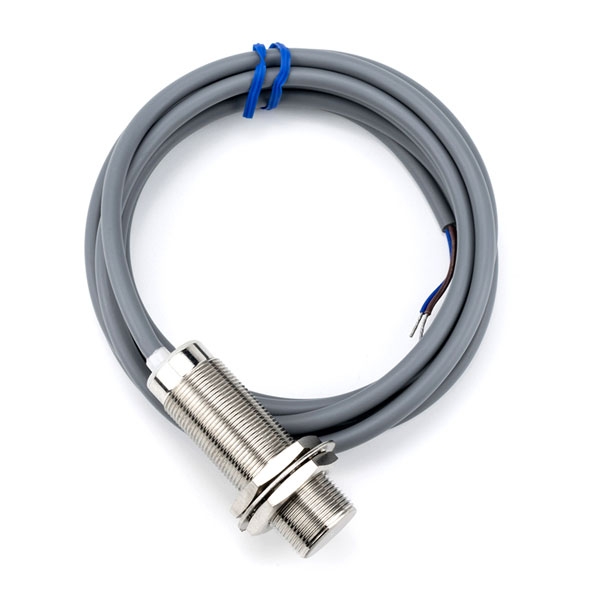

Standare Targets | Outputs |
| S1T-B1805N-O3S2 | M18 (Flush) | ▄5mm | 18×18×1(iron) | 3-wire NPN. N.O. |
| S1T-B1805N-C3S2 | 3-wire NPN. N.C. | |||
| S1T-B1805P-O3S2 | M18 (Flush) | ▄5mm | 18×18×1(iron) | 3-wire PNP. N.O. |
| S1T-B1805P-C3S2 | 3-wire PNP. N.C. | |||
| S2T-B1808N-O3S2 | M18 (Non-Flush) | ▄ 8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S2T-B1808N-C3S2 | 3-wire NPN. N.C. | |||
| S2T-B1808P-O3S2 | M18 (Non-Flush) | ▄ 8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S2T-B1808P-C3S2 | 3-wire PNP. N.C. | |||
| S1T-B1808N-O3S2 | M18 (Flush) | ▄▄8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S1T-B1808N-C3S2 | 3-wire NPN. N.C. | |||
| S1T-B1808P-O3S2 | M18 (Flush) | ▄▄8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S1T-B1808P-C3S2 | 3-wire PNP. N.C. | |||
| S2T-B1816N-O3S2 | M18 (Non-Flush) | ▄▄ 16mm | 48×48×1(iron) | 3-wire NPN. N.O. |
| S2T-B1816N-C3S2 | 3-wire NPN. N.C. | |||
| S2T-B1816P-O3S2 | M18 (Non-Flush) | ▄▄ 16mm | 48×48×1(iron) | 3-wire PNP. N.O. |
| S2T-B1816P-C3S2 | 3-wire PNP. N.C. | |||

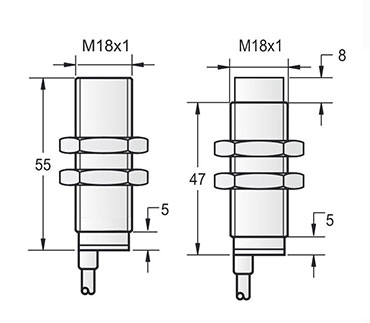

| 45mm Thread version: M18*1*55mm | ||||
| Models |
Sensing Face |
Max. Sensing Range |
Standare Targets | Outputs |
| S1T-B1805N-O3A2 | M18 (Flush) | ▄5mm | 18×18×1(iron) | 3-wire NPN. N.O. |
| S1T-B1805N-C3A2 | 3-wire NPN. N.C. | |||
| S1T-B1805P-O3A2 | M18 (Flush) | ▄5mm | 18×18×1(iron) | 3-wire PNP. N.O. |
| S1T-B1805P-C3A2 | 3-wire PNP. N.C. | |||
| S2T-B1808N-O3A2 | M18 (Non-Flush) | ▄ 8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S2T-B1808N-C3A2 | 3-wire NPN. N.C. | |||
| S2T-B1808P-O3A2 | M18 (Non-Flush) | ▄ 8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S2T-B1808P-C3A2 | 3-wire PNP. N.C. | |||
| S1T-B1808N-O3A | M18 (Flush) | ▄▄8mm | 24×24×1(iron) | 3-wire NPN. N.O. |
| S1T-B1808N-C3A2 | 3-wire NPN. N.C. | |||
| S1T-B1808P-O3A2 | M18 (Flush) | ▄▄8mm | 24×24×1(iron) | 3-wire PNP. N.O. |
| S1T-B1808P-C3A2 | 3-wire PNP. N.C. | |||
| S2T-B1816N-O3A2 | M18 (Non-Flush) | ▄▄ 16mm | 48×48×1(iron) | 3-wire NPN. N.O. |
| S2T-B1816N-C3A2 | 3-wire NPN. N.C. | |||
| S2T-B1816P-O3A2 | M18 (Non-Flush) | ▄▄ 16mm | 48×48×1(iron) | 3-wire PNP. N.O. |
| S2T-B1816P-C3A2 | 3-wire PNP. N.C. | |||
| S□T-B18*□-□3S2 | S□T-B18*□-□3A2 |
 |
 |
