DC 2-wire Inductive Proximity Sensor
  • DC 2-wire Inductive Proximity Sensor
  • DC 2-wire Inductive Proximity Sensor
  • DC 2-wire Inductive Proximity Sensor
  • DC 2-wire Inductive Proximity Sensor

DC 2-wire Inductive Proximity Sensor

M8/M12/M18/M30 DC 2-wire Inductive Proximity Sensor, much more simple for connection, also offering M8 connector type, ODM goods support.
Detailed description
Model

M8*1*45mm

M12*1*45mm

M18*1*55mm M30*1.5*55mm
Install Method Flush Non-Flush Flush Non-Flush Flush Non-Flush Flush Non-Flush
Scanning Distance 1.5mm 3mm 3mm 6mm 7mm 12mm 10mm 15mm
Amplifier Built-in Built-in Built-in Built-in
Recommened Distance 1.3mm 2.4mm 2.4mm 4.8mm 5.6mm 9.6mm 8mm 12mm
Response Friquency 500 Hz
Hysteresis <15%(Sr)
Response Time 0.3ms 1.5ms 1.5ms 1.5ms
Operating Voltage DC:10～30VDC±10%/ can do 5V
Current Consumption <10mA
Load Current 100mA Max
Leakage Current <0.01mA
Residual Votage <1.5V
Operating Temperature -25°C～+70°C
Circuit Protections Max.120mA overload, short-circuit protection
Shock/vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Material Copper with nickel coat, PBT
Wiring Method PVC φ3(φ4)×2M/3-wires (M8 connector offered)
Protection Degree IP67


Models

Sensing Face

Max. Sensing Range

Standare Targets Outputs
S-I1B08-C1 M8 (Flush) ▄ 1.5mm 8×8×1(iron) 2-wire N.O.
S-I2B08-C1 M8 (Non-Flush) ▄▄ 3mm 8×8×1(iron) 2-wire N.O.
S-I1B08-C2 M8 (Flush) ▄ 1.5mm 8×8×1(iron) 2-wire N.C.
S-I2B08-C2 M8 (Non-Flush) ▄▄ 3mm 8×8×1(iron) 2-wire N.C.
S-I1B12-C1 M12 (Flush) ▄▄ 3mm 12×12×1(iron) 2-wire N.O.
S-I2B12-C1 M12 (Non-Flush) ▄▄▄ 6mm 18×18×1(iron) 2-wire N.O.
S-I1B12-C2 M12 (Flush) ▄▄ 3mm 12×12×1(iron) 2-wire N.C.
S-I2B12-C2 M12 (Non-Flush) ▄▄▄ 6mm 18×18×1(iron) 2-wire N.C.
S-I1B18-C1 M18 (Flush) ▄▄ ▄7mm 21×21×1(iron) 2-wire N.O.
S-I2B18-C1 M18 (Non-Flush) ▄▄ ▄▄12mm 36×36×1(iron) 2-wire N.O.
S-I1B18-C2 M18 (Flush) ▄▄ ▄7mm 21×21×1(iron) 2-wire N.C.
S-I2B18-C2 M18 (Non-Flush) ▄▄ ▄▄12mm 36×36×1(iron) 2-wire N.C.
S-I1B30-C1 M30 (Flush) ▄▄ ▄10mm 30×30×1(iron) 2-wire N.O.
S-I2B30-C1 M30 (Non-Flush) ▄▄ ▄▄▄15mm 45×45×1(iron) 2-wire N.O.
S-I1B30-C2 M30 (Flush) ▄▄ ▄10mm 30×30×1(iron) 2-wire N.C.
S-I2B30-C2 M30 (Non-Flush) ▄▄ ▄▄▄15mm 45×45×1(iron) 2-wire N.C.


S-I□B08-C□ S-I□B12-C□

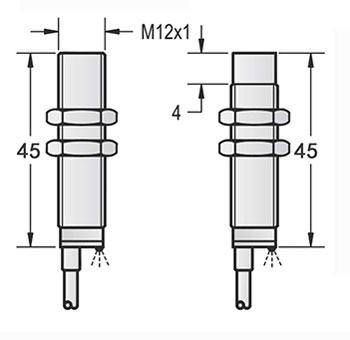

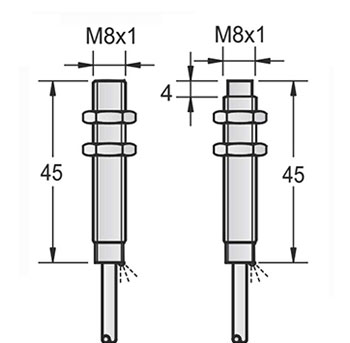

 M8 AC type proximity sensor dimension  M12 AC type proximity sensor dimension
S-I□B18-C□ S-I□B30-C□

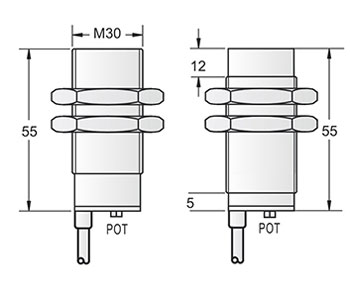

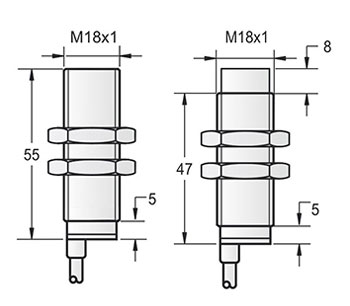

 M18 AC type proximity sensor dimension  M30 AC type proximity sensor dimension
