Micro inductive proximity sensors S/SS03/04

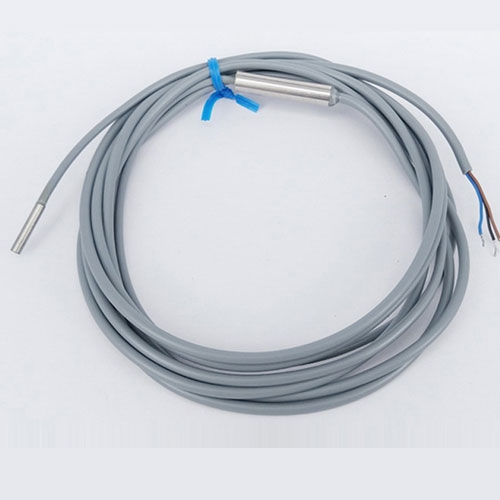

Micro inductive proximity sensors S03/SS03/S04/SS04 series, micro size amplifier bulit-in, also offering super micro size, amplifier put outside type, suitable for limited space install, with LED indicator. Offer 2-wire/3-wire/4-wire 5vDC for all kinds of inductive proximity sensor too.

Detailed description

Model	SS03 Series	S03 Series	SS04Series	S04 Series
Scanning Distance	Max.1mm	Max.1mm	Max.1.5mm	Max.1.5mm
Amplifier	Outside with cable	Built-in	Outside with cable	Built-in
Recommened Distance	0.8mm	0.8mm	1.2mm	1.2mm
Standard Sensing Object	3×3×1(iron)	3×3×1(iron)	4.5×4.5×1(iron)	4.5×4.5×1(iron)
Response Friquency	2KHz or 1KHz
Hysteresis	<15%(Sr)
Operating Voltage	DC:10～30VDC±10%/ can do 5V
Current Consumption	<10mA
Load Current	100mA Max
Leakage Current	<0.01mA
Residual Votage	<1.5V
Operating Temperature	-25°C～+70°C
Shock/vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
EMC	RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Material	SUS/PA66
Wiring Method	φ3×2M/3-wires (M8 connector offered)
Protection Degree	IP67
