SN05 Big rectanguar Inductive sensor

SN05 Big rectanguar Inductive sensor, Many knids of outputs choice, covered most of cases, Simple installation, can be used for high-speed pulse generator, high-speed rotation control, etc.

Detailed description

1. Many kinds of outputs choice, covered most of cases;
2. Simple installation, can be used for high-speed pulse generator, high-speed rotation control, etc.;
3. Easy to check indicator, easy to know working status;
4. Installed easily, and excellent performance;
5. Dual LED indicators, Built-in terminal type or connector mounting type connections.

Models	Connection Method	Detection	Sensing distance	Outputs
SN-50AC	Wire lead-out type	AC outout	50mm	AC.NO.
SN-50N		NPN output		NPN.NO.
SN-50P		PNP output		PNP.NO.
SN-50B		DC output		DC.NO.
SN-50NC		NPN output		NPN.NO.NC
SN-50PC		PNP output		PNP.NO.NC

Specifications:

Rating performance		--
DC 3-wire type		--
Model		SN-50□
Detection distance		50mm±10%
Setting distance		0～50mm
Back distance		Less than 10% of the detection distance
Detection object		Magnetic (non-magnetic) metals will reduce the detection distance. Refer to "Property Data"
Standard test object		Iron 30301 mm
Response time		Under 2ms
Response frequency		150Hz
Power supply voltage ( use voltage range )		DC12～24V (p-p)10% DC10～30V
Rated current		2000mA below
Control output	Switching capacity	Open collector NPN below 50mA
	Residual voltage	(DC 30V) below 1V (load current 50mA and conductor length 2M) detection display.
Display lamp		Detection display (Red)

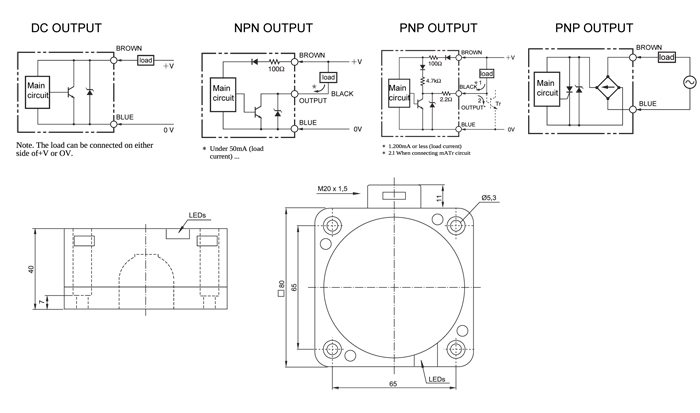

Action state (Objects detecting)		See the time chart of " Input/Output circuit diagram " for details
Circuit protection		Reverse connection protection, surge absorption
Ambient temperature		Working time and storage time: -25~ +70℃ (no freezing and and condensation ); working time and storage.
Ambient humidity		-35~95% RH (no condensation)
Temperature effect		Within the temperature range of -25~+70℃, detection distance at ±23℃ is less than 20%
Voltage effect		Within the range of 10% of rated power supply voltage, the detection distance at rated power supply voltage is less then 2.5%
Insulation resistance		50M above
Withstand voltage		AC 500V 50/60Hz 1Min.
Vibration (durability)		10~55Hz up and down amplitude 1.5m X, Y, Z each directions 2H
Impact (durability)		200m/s²X, Y, Z each directions 10 times
Protective structure		IEC standard IP67
Connection method		Wiring 2M length cable (Standard)
Weight		Approx.160g
Materials	Housing	Anti-heat ABS
	Sensing face
Annex		use manual

View more detail from the link below

PDF of SN-50 series>>
