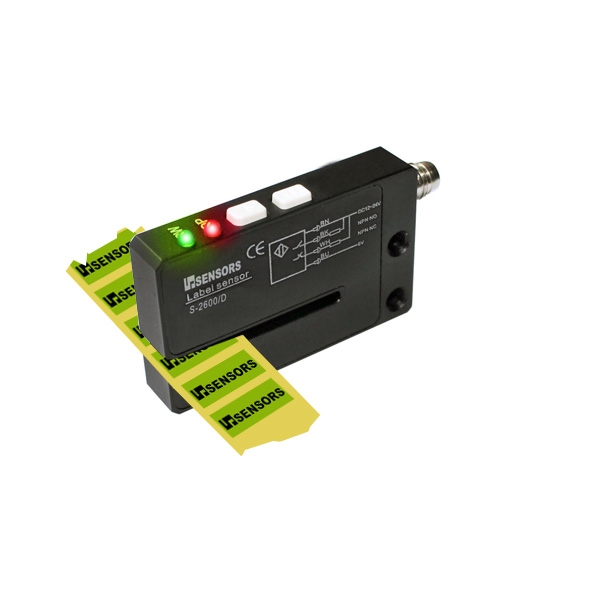

Button-pushed Photoelectric Label Sensor S-2600 Series
  • Button-pushed Photoelectric Label Sensor S-2600 Series
  • Button-pushed Photoelectric Label Sensor S-2600 Series

Button-pushed Photoelectric Label Sensor S-2600 Series

Button-pushed Photoelectric Label Sensor S-2600 Series , optical way detection, low cost and can be suitable for most of applicaiton, full AL metal housing, firmed structure, PNP.NO.NC or NPN.NO.NC optional, you can also choose it be cable type or M8 connector, easier adjust sensitivity via button.
Detailed description


  • 1. Designing for label detection;
  • 2. Universal using type;
  • 3. Metal shell, stable and compatible;
  • 4. Low cost, high-performance;
  • 5. Cable type or connector type;



Models Guide:


Shape Of Goods Slot width 2.5mm Output
 Photoelectric Label Sensor S-2600 Cable type 2M cables Outlet S-2600N
 NPN.NO.NC
S-2600P PNP.NO.NC
 Photoelectric Label Sensor S-2600 M8 connector type Connector type S-2600N/D NPN.NO.NC
S-2600P/D PNP.NO.NC
PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Emitting light RedLED：640nm
Operating voltage DC:12～24V±10%(Ripple P-P:10%Max)
Current consumption 15mA Max
Load current 100mA Max at DC 24V
Output type N=NPN.NO.NC / P=PNP.NO.NC
Protection circuit

Reversed supply ciruit protection,short citcuit protection output

Response time 50υs Max
Operation mode NO or NC
Operation current DC 1.1mA no-load
Operating temperature -20°C～+55°C(No freezing allowed )
Ambient hunidity 35%~95%RH
Storage temperarure -20°C～+55°C(No freezing allowed )
Storage hunidity 35%~95%RH
Material AL
Wiring method φ4×2M/4-wires / φ4×2M / M8(4 pins)
Protection degree IP66
Weight -
























































View more detail from the link below

PDF of s-2600 series>>
