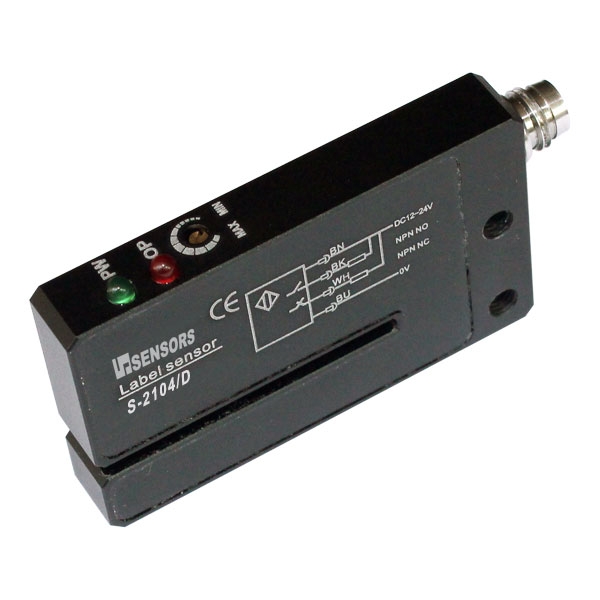

Potentiometer Photoelectric Label Sensor S-2000 Series

Potentiometer Photoelectric Label Sensor S-2000 Series, optical way detection, low cost and can be suitable for most of application, full AL metal housing, firmed structure, PNP.NO.NC or NPN.NO.NC optional, you can also choose it be cable type or M8 connector, support OEM&ODM.

Detailed description

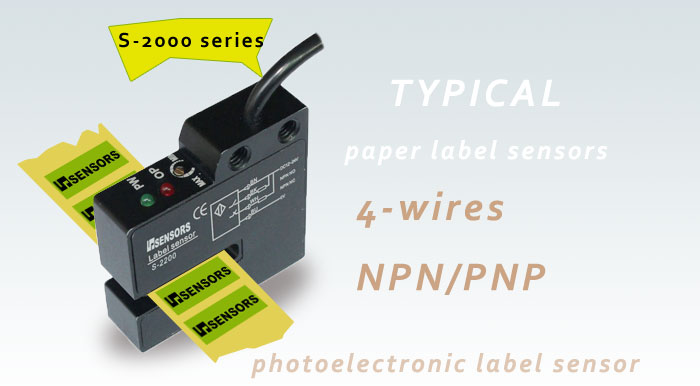

S-2000 seriese Photoelectirc label sensor application

1. Designing for label detection;
2. Universal using type;
3. Metal shell, stable and compatible;
4. Low cost, high-performance;
5. Cable type or connector type;

Models Guide:

Diagram of goods	Slot width	2mm	5mm	6mm

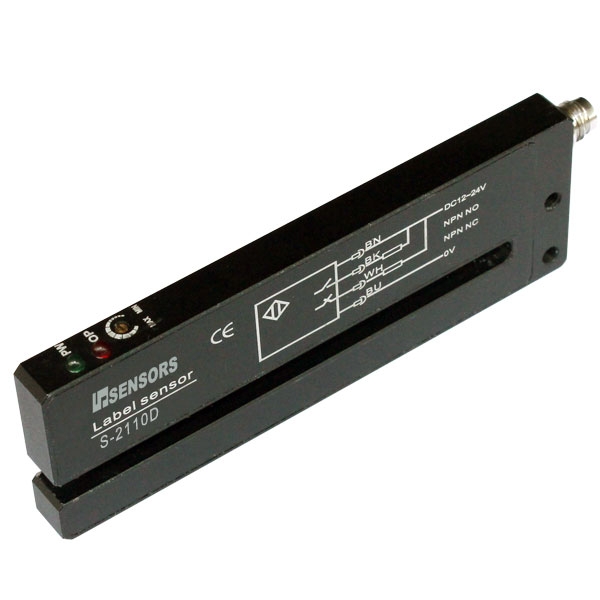

	2M cables Outlet	S-2100N S-2100P	S-2110N S-2110P	S-2200N S-2200P
	Connector type	S-2100N/D S-2100P/D	S-2110N/D S-2110P/D	S-2200N/D S-2200P/D

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC

Specifications:

Emitting light	RedLED：640nm
Operating voltage	DC:12～24V±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO.NC / P=PNP.NO.NC
Protection circuit	Reversed supply circuit protection,short circuit protection output
Response time	50υs Max
Operation mode	NO or NC
Operation current	DC 1.1mA no-load
Operating temperature	-20°C～+55°C(No freezing allowed )
Ambient humidity	35%~95%RH
Storage temperature	-20°C～+55°C(No freezing allowed )
Storage humidity	35%~95%RH
Materials	AL housing, PVC cable
Wiring method	φ4×2M/4-wires / φ4×2M / M8(4 pins)
Protection degree	IP66
Weight	-
