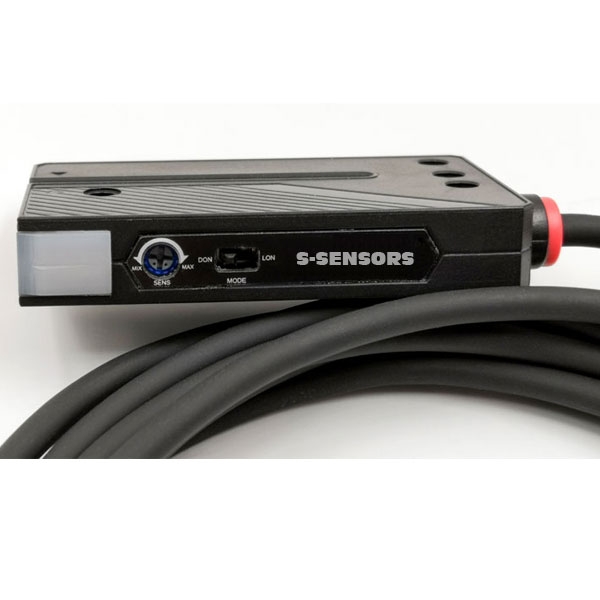

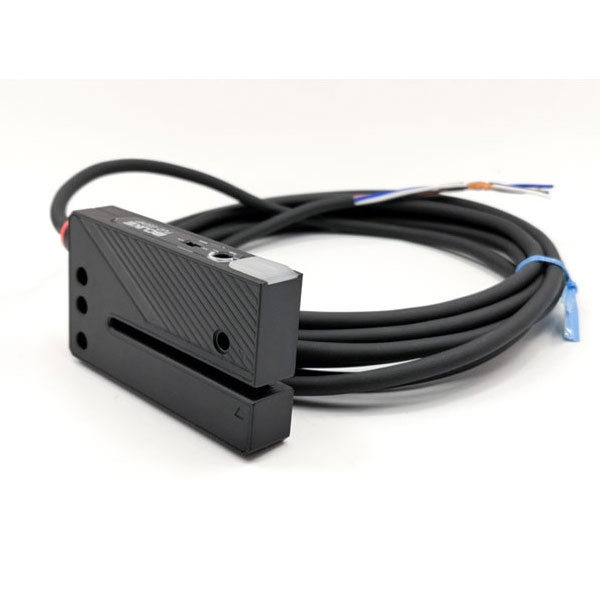

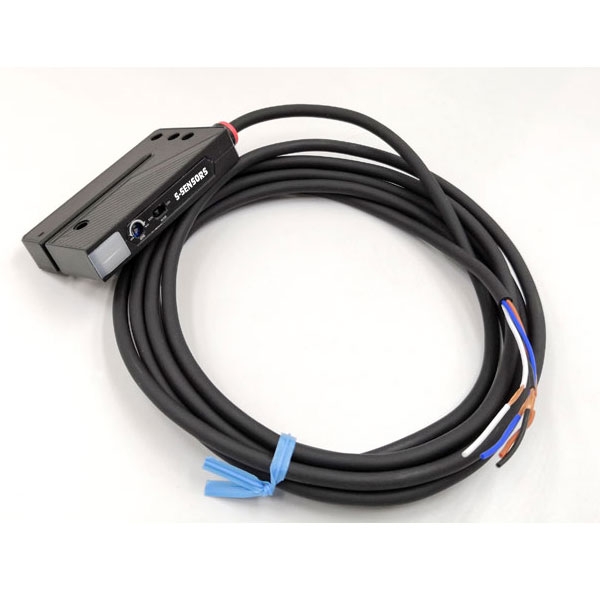

S-2800 Simple Economic NPN/PNP Label Sensor
  • S-2800 Simple Economic NPN/PNP Label Sensor
  • S-2800 Simple Economic NPN/PNP Label Sensor
  • S-2800 Simple Economic NPN/PNP Label Sensor
  • S-2800 Simple Economic NPN/PNP Label Sensor

S-2800 Simple Economic NPN/PNP Label Sensor

S-2800 Simple Economic NPN/PNP Label Sensor, this is a economic model for labeling machine application, low cost and NPN and PNP all in one.
Detailed description


  • 1. Designing for typical label detection;
  • 2. Low cost and simple setting;
  • 3. Plastic housing, stable and compatible;
  • 4. Economic type, 0.2 sec. response time;
  • 5. Standard 2M cable.



Models Guide:


Shape Of Goods Slot width 2.5mm Output
 Photoelectric Label Sensor S-2600 Cable type 2M cables Outlet S-2800NP
 NPN+PNP.NO.NC


Specifications:

Solt width 2mm
Operating voltage DC:12～24V±10%(Ripple P-P:10%Max)
Current consumption 15mA Max
Load current 100mA Max at DC 24V
Output type NPN+PNP.NO.NC
Protection circuit

Reversed supply ciruit protection,short citcuit protection output

Response time 0.2 seconds Max
Operation mode NO or NC
Operation current DC 1.1mA no-load
Operating temperature -20°C～+55°C(No freezing allowed )
Ambient hunidity 35%~95%RH
Storage temperarure -20°C～+55°C(No freezing allowed )
Storage hunidity 35%~95%RH
Material Plastic housing and PVC cables
Wiring method φ4×2M/4-wires
Protection degree IP66
Weight -

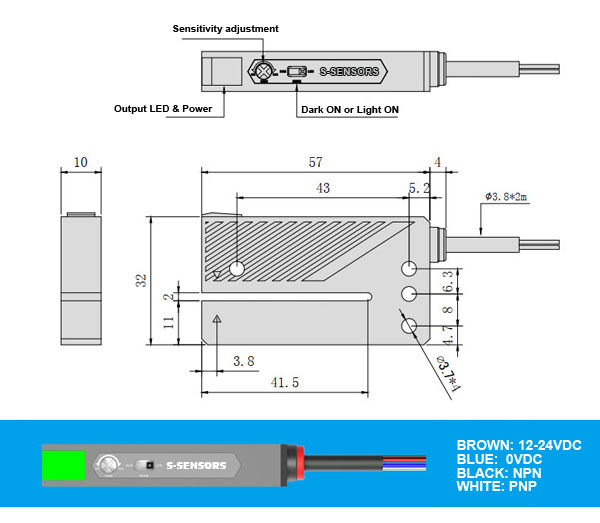

 S-2800 Label sensor dimension
