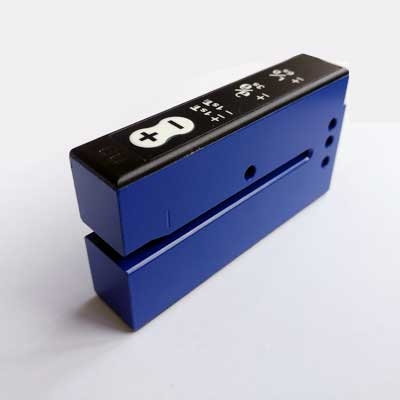

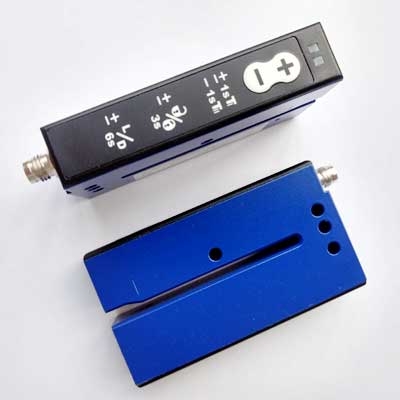

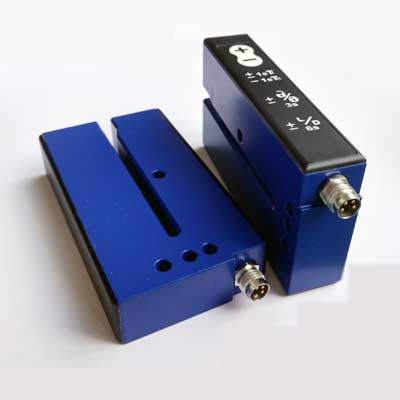

Ultrasonic Clear/Transparent Label Sensor S-2300 Series

Ultrasonic Clear/Transparent Label Sensor S-2300 Series, not effected by color, metallic, printing style, material ect. suitable for all labeling machine, accurate sensing function, offering M8 connector type with 2M femal cable.

Detailed description

1. Ultrasound principle, Metallic, non-matallic labels detection and RFID tags;
2. Good functions for avoiding lighting obstruction;
3. Not affect by colors, double sheet overlap detection.

Models Guide:

Sensing Type	Connecting	Sensing Range	Outputs	Sensing Action	Models
	M8 3-pins Connector	3mm	NPN.NO.NC	Light ON or Dark ON	S-2300/CD
	M8 3-pins Connector	3mm	PNP.NO.NC	Light ON or Dark ON	S-2300P/CD

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC, with "/CD" mean connector type

Specifications:

Model	S-2300 series
Width	3mm
Label from	2mm
Label size	2mm
Power supply voltage	10..........30VDC
Power consumption	40mA
Ripple value	<1V
Switch output	PNP+NPN
Signal voltage	Ligh/Dark Action can be adjusted by button
PNP	HIGH=UV-(<2V)/LOW=0V
NPN	HIGH=UV-(<2V)/LOW=2V
Maximum output current	100mA
Capacity	100uF
Reaction time	300us
Initialization time	100ms
VDE protection class	III
protection class	ip65
Circuit Protection	B.C
Short-circuit protection	yes
Ambient temperature	operating：-5℃.....+55℃
	storage：-30℃.....+70℃
Work	Ultrasonic inspection
Maximum wind speed environment	5m/sec
Connector Type	M8,4-pin
Options Adjustment	Adjusted with "+""-" button
Shell Material	Aluminum
Weight	95g
