Capacitive Label Sensor, clear label sensor

Capacitive Label Sensor S-4100, capacitive way detection, low cost and can be suitable for most of applicaiton, full AL metal housing, firmed structure, PNP.NO.NC and NPN.NO.NC optional,150mm cable length with M12 4pins connector, suitable for clear label detection or non-metal label sensing.
Detailed description


  • 1. Designing for label detection;
  • 2. Clear labels and non-metal labels detection.
  • 3. Metal shell, stable and compatible;
  • 4. Low cost, high-performance;
  • 5. 150mm with M12 connector type.


Models Guide:


Models Cable and Ouput
S-4100 150mm with M12 connector;
NPN + PNP together via different sub-cable connection

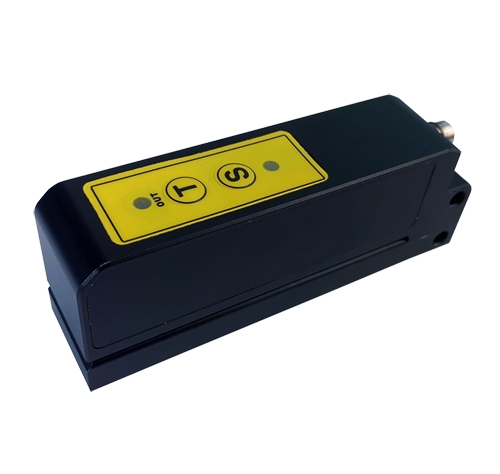

S-4200 M8 4-pin connector
NPN+PNP, Metallic labels available
PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Model S-4100 , S-4200(Metallic label available)
Detection distance groove width * = 0.7 * 85 mm
Operation voltage DC 10 ~ 30 v including 10% wave values (P - P)
consumption Current 25mA max
Response time 0.1ms
Frequency 5kHz
Control OutPut 1 NPN transistor collector output, normally open;
or 1 PNP transistor normally open collector output .
Sensing feature Reversible label movement direction
Output current 100mA
Electrical reliability Wiring protection/reverse connect protection/short circuit protection
Indicator Red light H: balance benchmark indicator
Red light D: sensitivity is high or low
Green light F: signal output indicator
Sensitivity adjustment Button to adjust
Environmental temperature 0 ℃ ~ 6 ℃
Material appearance AL
Wiring method M12 connector
Weight -- -- --





 Capacitive Transparent Label Sensor S-4100 datasheet download

View more detail from the link below

PDF of s-4100 series>>
