SL-R series Ring Inductive Sensors
  • SL-R series Ring Inductive Sensors
  • SL-R series Ring Inductive Sensors
  • SL-R series Ring Inductive Sensors
  • SL-R series Ring Inductive Sensors

SL-R series Ring Inductive Sensors

SL-R series Ring Inductive Sensors, different holes size offered, short-circuit protection, over load protection, Polarity protection, 10-30VDC Max. speed 35M/s, NPN or PNP outputs optional.
Detailed description

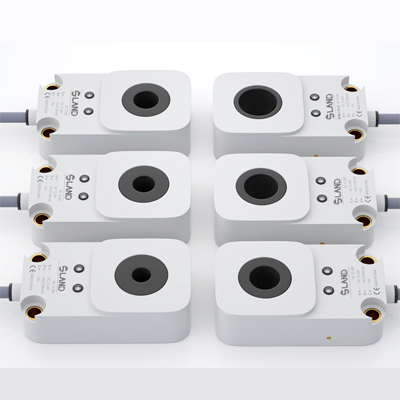

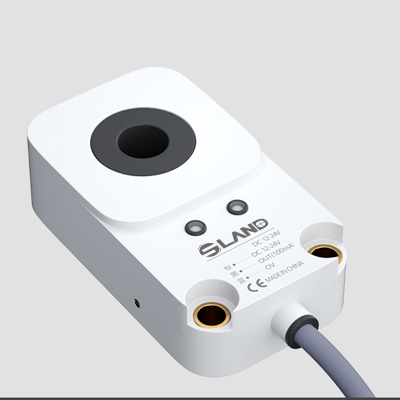

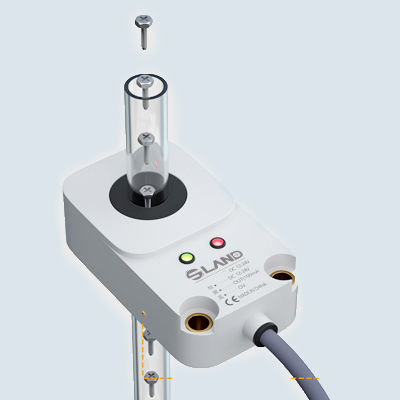

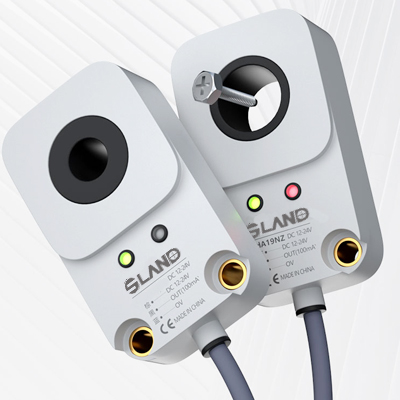

Ring Inductive sensor SL-R

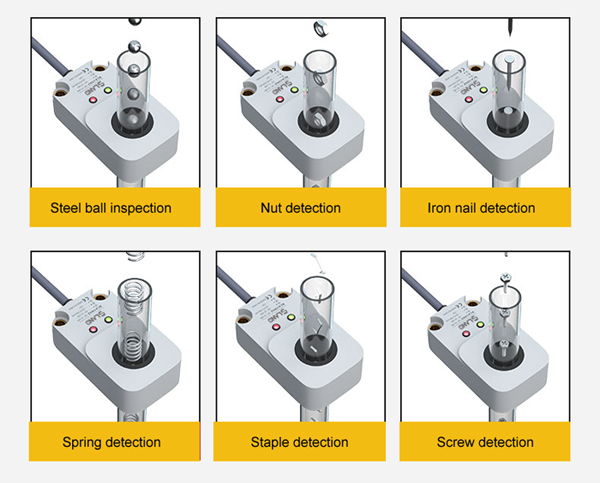

  • 1. Min.1*2mm detectable.
  • 2. Sensitivity adjustable, different hole sizes optional.
  • 3. ABS material flame retardant and waterproof.
  • 4.Anti-interference, can be installed side-by-side.


Models Guide:



Sensing Type Connecting Min. Sens.Targets Outputs Models
 SL-R ring sensor
2M cable type Φ1*2mm NPN.N.O SL-R06N
NPN.N.C. SL-R06N2
PNP.N.O. SL-R06P
PNP.N.C. SL-R06P2
 SL-R ring sensor
2M cable type Φ1*3mm NPN.N.O. SL-R08N
NPN.N.C. SL-R08N2
PNP.N.O. SL-R08P
PNP.N.C. SL-R08P2
 SL-R ring sensor 2M cable type Φ1*4mm NPN.N.O SL-R10N
NPN.N.C. SL-R10N2
PNP.N.O. SL-R10P
PNP.N.C. SL-R10P2
SL-R ring sensor 2M cable type Φ1*5mm NPN.N.O. SL-R12N
NPN.N.C. SL-R12N2
PNP.N.O. SL-R12P
PNP.N.C. SL-R12P2
 SL-R ring sensor 2M cable type Φ1*6mm NPN.N.O SL-R15N
NPN.N.C. SL-R15N2
PNP.N.O. SL-R15P
PNP.N.C. SL-R15P2
 SL-R ring sensor 2M cable type Φ1*7mm NPN.N.O. SL-R19N
NPN.N.C. SL-R19N2
PNP.N.O. SL-R19P
PNP.N.C. SL-R19P2
 SL-R ring sensor 2M cable type Φ1*8mm NPN.N.O SL-R21N
NPN.N.C. SL-R21N2
PNP.N.O. SL-R21P
PNP.N.C. SL-R21P2
PS: with "N" mean NPN.N.O., with "N2" mean NPN.NO.N.C., with "P" mean PNP.N.O., with "P2" mean PNP.NO.N.C.


Specifications:

Operating Voltage DC 10~30V
Outputs NPN.NO or NC, PNP.NO or NC
Protection Short-circuit protection, Overload protection, Polarity protection
Pulse expansion Built-in 200ms (MCU modulation)
Detective ability 35M/s (Blow through at high speed)
Installation Non-flush
Max.loading 150mA
Sensing targets Magnetic metals







View more detail from the link below

PDF of SL-R series>>
