BGS-2000 Long Range BGS Sensor
  • BGS-2000 Long Range BGS Sensor
  • BGS-2000 Long Range BGS Sensor
  • BGS-2000 Long Range BGS Sensor
  • BGS-2000 Long Range BGS Sensor

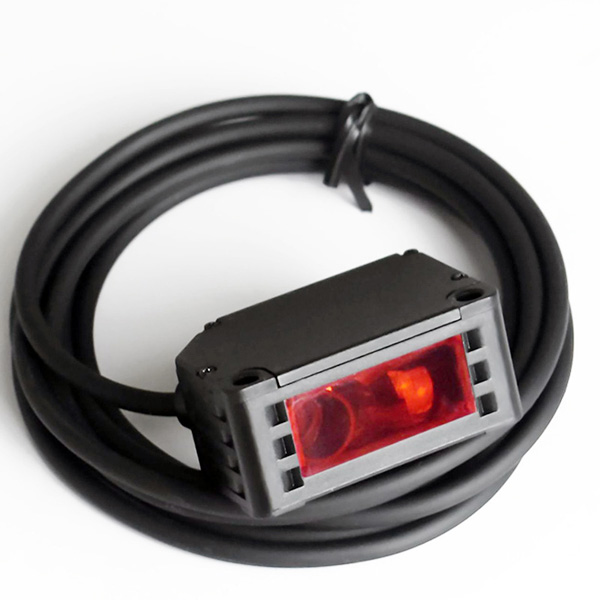

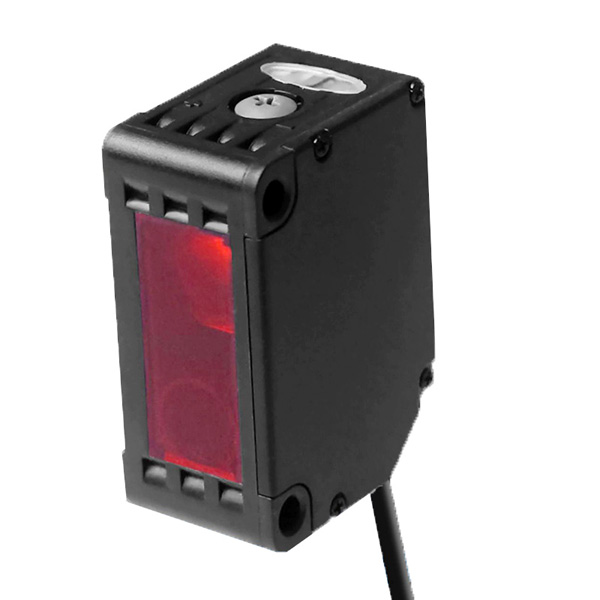

BGS-2000 Long Range BGS Sensor

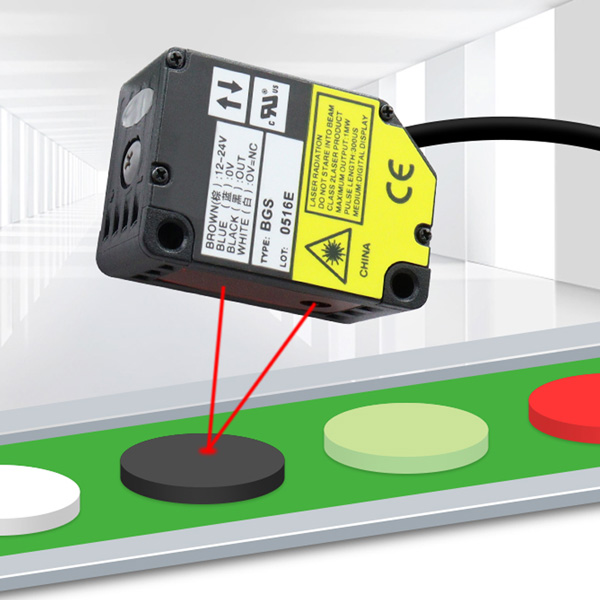

BGS-2000 Long Range BGS Sensor, 30-2000mm long sensing distance, Not affected by colors, BGS diffuse laser photoelectric sensor for long-distance sensitive detection, sensor background suppression version.
Detailed description


  • 1. With BGS functions 30~1000mm, not impacted by background;
  • 2. Good functions for avoiding lighting obstruction;
  • 3. 4-wires NO/NC switched;
  • 4. Small blind sensing area, accuracy detection


Models Guide:



Sensing Type Connecting Sensing Range Outputs Models
  2M cable type 30-2000mm,
visible light
NPN.NO.NC BGS-2000
  2M cable type 30-2000mm,
visible light
PNP.NO.NC BGS-2000P


Specifications:

Operating voltage 12~24VDC
Consuming current 25mA Max.
Circuit protection Power connected/output, influence each other
Response time 2ms
Control OutPut Loading voltage 24 VDC Max
Loading current 100mA Max (residual voltage 1V Max)
Light source Visible red laser light
Operating environment Sunshine: 10,000 lux Max. filament lamp: 5,300 lux Max.
Working: -25~ ±55 ℃ , storage: -40~ ±70 ℃, no icing/dew
Working: 35~ 85% RH , storage: 35~ 95% RH
Insulating resistance 20MΩ min. (DC500V)
Vibration 10-55Hz double-amplitude, 1.5mm X, Y, Z each directions last for 2 hours
BGS Range 30~1000mm
Impact Endurance 500m/s2 X, Y, Z each directions three times
Protecting IEC-IP67
Material Housing PBT
Sensing surface PMMA
Weight 80g






View more detail from the link below

PDF of BGS-2000 background suppression sensor series>>
