 Background suppression BGS sensors
  •  Background suppression BGS sensors
  •  Background suppression BGS sensors

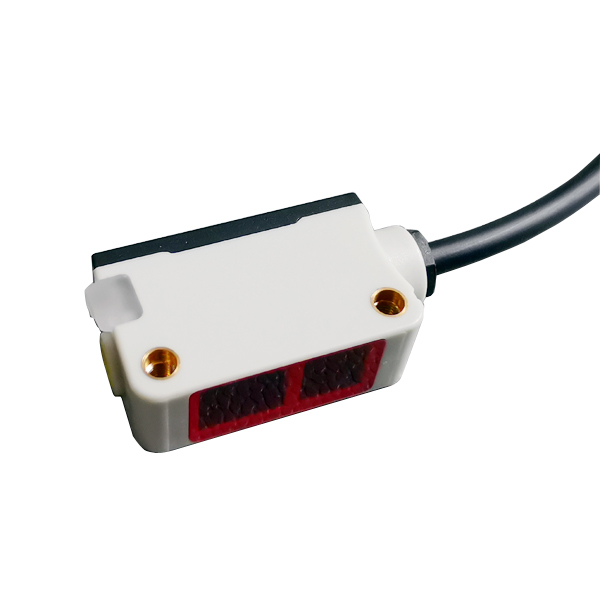

Background suppression BGS sensors

BGS/FGS function photoelectric sensors, this sensors will be not effected by colors, auto adjustment emitter will let sensors keep a fix sensing distance, NPN or PNP offered, different sensing range optional.
Detailed description


  • 1. With BGS/FGS functions, not impacted by background;
  • 2. Good functions for avoiding lighting obstruction;
  • 3. 3-wires NO/NC switched;
  • 4. Small blind sensing area, accuracy detection


Models Guide:



Sensing Type Connecting Sensing Range Outputs Models
  2M cable type 2-25mm,
visible light
NPN.NO BGS-E05N
NPN.NC BGS-E05N2
PNP.NO BGS-E05P
PNP.NC BGS-E05P2
  2M cable type 5-250mm,
visible light
NPN.NO.NC BGS-E25N
PNP.NO.NC BGS-E25P
  2M cable type 5-350mm,
visible light
NPN.NO.NC BGS-E35N
PNP.NO.NC BGS-E35P


Specifications:

Operating voltage 10~30VDC
Consuming current 25mA Max.
Circuit protection Power connected/output, influence each other
Response time 0.5ms Max. or 1ms Max.
Control OutPut Loading voltage 26.4 VDC Max
Loading current 100mA Max (residual voltage 1V Max)
Light source Visible red light or invisible infered
Operating environment Sunshine: 10,000 lux Max. filament lamp: 5,300 lux Max.
Working: -25~ ±55 ℃ , storage: -40~ ±70 ℃, no icing/dew
Working: 35~ 85% RH , storage: 35~ 95% RH
Insulating resistance 20MΩ min. (DC500V)
Vibration 10-55Hz double-amplitude, 1.5mm X, Y, Z each directions last for 2 hours
BGS/FGS MODE BGS: White empty or connected "+";
FGS: white wire connected "-";
Impact Endurance 500m/s2 X, Y, Z each directions three times
Protecting IEC-IP67
Material Housing PC + ABS
Sensing surface PMMA
Weight 50g







View more detail from the link below

PDF of BGS-E background suppression sensor series>>
