SL-LR150 Irregular objects sensor
  • SL-LR150 Irregular objects sensor
  • SL-LR150 Irregular objects sensor
  • SL-LR150 Irregular objects sensor

SL-LR150 Irregular objects sensor

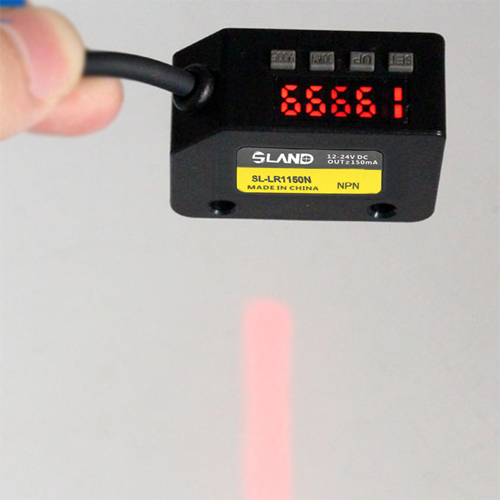

High accuracy diffuse photoelectric sensor SL-LR150 series, rectangular light spot visible red light, Irregular objects sensor. The sensor with digital display, counter function and delay function supported, N.O. and N.O. switchtable.
Detailed description


  • 1. Rectangular shape light spot;
  • 2. Background suppression, One key setting;
  • 3. 100mm length rectangular light spot at 70mm distance;
  • 4. Delay outputs supported, N.O.or N.C. switchtable.

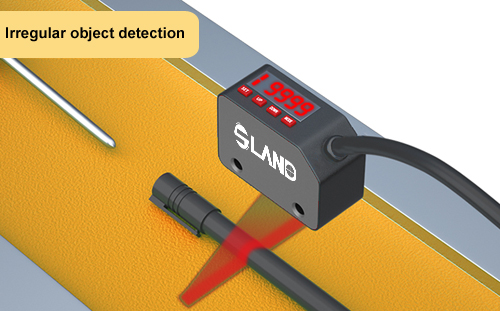

SL-LR150_APP


Models Guide:



Sensing Type Connecting Sensing Range Outputs Models
  2M cable type 150mm NPN.NO.NC SL-LR1150N
PNP.NO.NC SL-LR1150P
PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Models SL-LR1150N SL-LR1150N
Sensing range 150mm
Standare sensing objects 2mm target @ 70mm sensing distance
5mm target @ 150mm sensing distance
Light source Red LED
Response time 0.5ms
Operating voltage 12~24VDC (P-P±10% Max)
Screen Single digital display, 4-numbers red LED showed current light value;
Value range: 0-4089
Output delay function Delay ON/OFF;
Counter ON/OFF;
0.1ms-9,999ms setting range.
Control outputs Max.100mA @ 24VDC
Working environment Incandescent lamp: 30,000Lux
Daylight: 20,000Lux
Power loss Max.0.5W @ 24VDC
Operating environment Working: -25~ ±55 ℃ , storage: -40~ ±70 ℃, no icing/dew
Working: 35~ 85% RH , storage: 35~ 95% RH
Insulating resistance 20MΩ min. (DC500V)
Vibration 10-55Hz double-amplitude, 1.5mm X, Y, Z each directions last for 2 hours
Impact Endurance 500m/s2 X, Y, Z each directions three times
Protecting IEC-IP65
Material Housing PBT
Sensing surface --
Weight approx.53g included 2M cable
Accessories --







View more detail from the link below

SL-LR150 Photoelectric sensor
