S18 series photo sensor

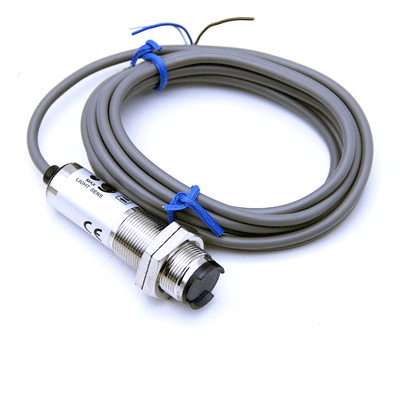

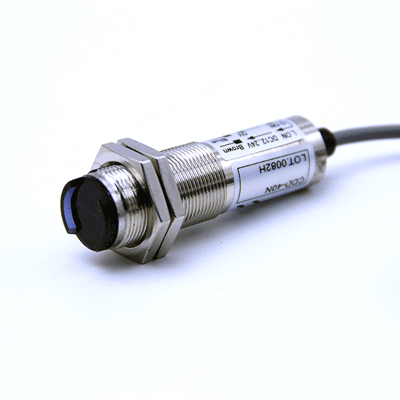

S18 series photo sensor, it can be plastic shell or metal shell, and also reflective, mirror reflective or through beam for choice, IR invisible light, NO.NC, NPN PNP. It's a universal type photo sensor for widely application, we can do cable type or connector type, please choose the product which is meet your needs.

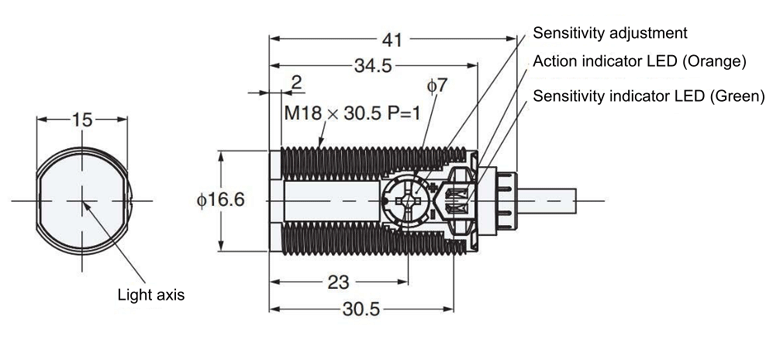

Detailed description

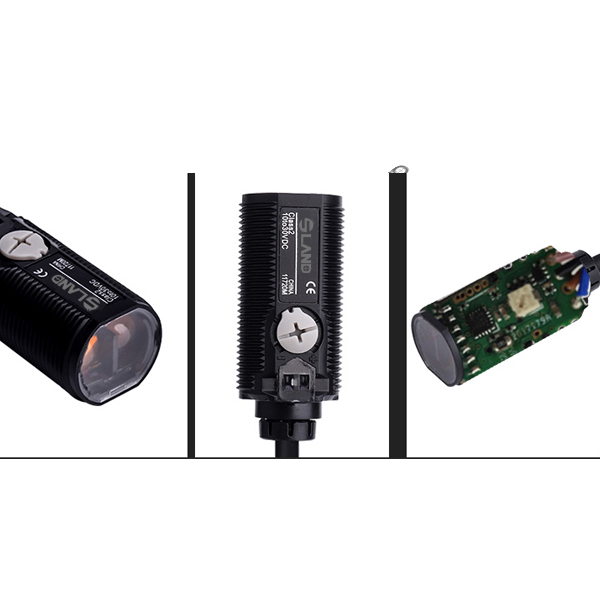

1. Cylindrical shape, amplifier built-in, similar to proximity sensor appearance;
2. Short housing, suitable for most of applications;

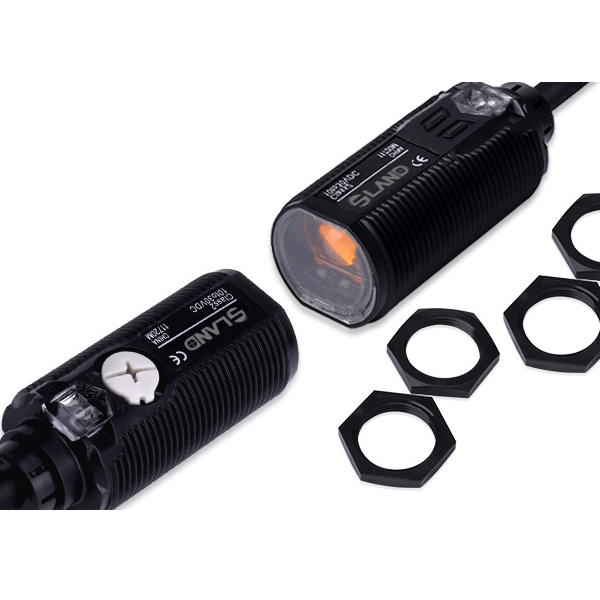

3. Three detection method: Diffsue, retro-reflective, and Through beam Type;
4. High lighting LED indicator,easy to see from different directions;
5. Short-circuit protection and reverse polarity protection, sensing range adjustable.

Models Guide:

Sensing Type	Head	Models	Sensing Method	Sensing Range	Weight (g)	Outputs
	M18	S18-R40NC	Diffuse	400mm	Approx.65	NPN.NO.NC.
		S18-R40PC				PNP.NO.NC.
	M18	S18-M300NC	Retro-Reflective	3000mm	Approx.75	NPN.NO.NC.
		S18-M300PC				PNP.NO.NC.
	M18	S18-T1000NC	Through-Beam	10m	Approx.115	NPN.NO.NC.
		S18-T1000PC				PNP.NO.NC.

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC

Specifications:

Sensing Ways	Thr-beam type	Retro-reflective type	Diffuse type
Output Method	NPN.NO/NC / PNP.NO.NC
Light Source	Infrared lights
Ambient Operating Illumination	Incandescent lamp: ≦3000Lux ; Sunshine: ≦10000 Lux
Protection loop	Reverse polarity protection, short-circuit protection
Operating Voltage	10~30 VDC ±10% (P-P) 10% below
Current Consumption	DC: 45mA Max	DC: 25mA Max	DC: 25mA Max
Load Current	200mA Max
Vibation Resistance	10~55Hz; 1.5mm X,Y,Z direction lasting 2 hours
Shock Resistance	500m/s (Approx.50g) / X,Y,Z direction lasting 2 hours
Residual Voltage	≦1 VDC
Ambient Humidity	35%-85% RH
Operating Temperature	-25℃~+70℃ (no-freezing), storage: -30℃~+80℃
Housing	PC, PMMA (lens)
Protection Degree	IP65
