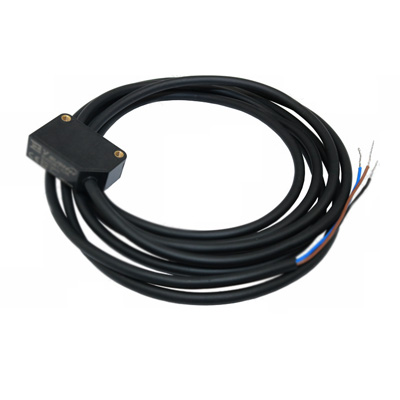

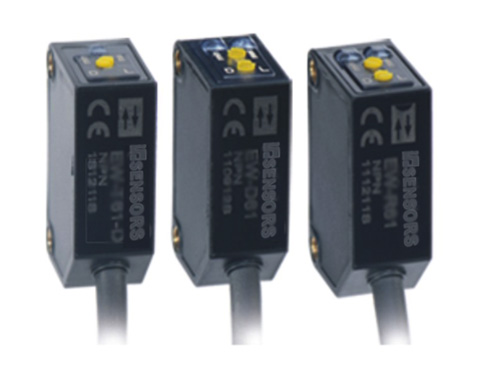

S-CR series photo sensor

S-SR series photo sensor, universal sensor, can be appliaction on many area, such as counting, existing, position ect. it also have refletive, mirror reflective or through-beam type for choice. we can customize sensors according to you needs.

Detailed description

1. Accurate detection;
2. Good functions for avoiding lighting obstruction;
3. 3-wires NO/NC switched;

Models Guide:

Sensing Type	Connecting	Sensing Range	Outputs	Models
	2M cable type	6M, invisible light	NPN.NO.NC	S-CR600N
			PNP.NO.NC	S-CR600P
	M8 connector type		NPN.NO.NC	S-CR600N/CD
			PNP.NO.NC	S-CR600P/CD
	2M cable type	3M, visible light	NPN.NO.NC	S-CR300N
			PNP.NO.NC	S-CR300P
	M8 connector type		NPN.NO.NC	S-CR300N/CD
			PNP.NO.NC	S-CR300P/CD
	2M cable type	5~100m, invisible light	NPN.NO.NC	S-CR10N
			PNP.NO.NC	S-CR10P
	M8 connector type		NPN.NO.NC	S-CR10N/CD
			PNP.NO.NC	S-CR10P/CD
	2M cable type	600m, invisible light	NPN.NO.NC	S-CR60N
			PNP.NO.NC	S-CR60P
	M8 connector type		NPN.NO.NC	S-CR60N/CD
			PNP.NO.NC	S-CR60P/CD

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC

Specifications:

Models		S-CR600 series	S-CR300 series	S-CR60 series	S-CR10 series
Sensing range		6m	3m	100mm	600mm
Standare sensing objects		opaque Φ12mm	opaque Φ12mm	100*100 white paper	300*300 white paper
Sensing differential		--	--	--	20% below
Sensing angle		3~15^。	3~20^。	--	--
Operating voltage		12~24VDC (P-P±10% Max)
Consuming current		Receiver: 15mA		30mA Max.
		Emitter: 15mA
Circuit protection		Power/output	Power connected/output, influence each other
Response time		1.0ms Max.	2.0ms Max.	1.0ms Max.
Control OutPut		Loading voltage 26.4 VDC Max
		Loading current 100mA Max (residual voltage 1V Max)
Light source		Visible red light or invisible infered
Operating environment		Sunshine: 10,000 lux Max. filament lamp: 3,000 lux Max.
		Working: -25~ ±55 ℃ , storage: -40~ ±70 ℃, no icing/dew
		Working: 35~ 85% RH , storage: 35~ 95% RH
Insulating resistance		20MΩ min. (DC500V)
Vibration		10-55Hz double-amplitude, 1.5mm X, Y, Z each directions last for 2 hours
Impact	Endurance	500m/s²X, Y, Z each directions three times
Protecting		IEC-IP67
Material	Housing	PBT
	Sensing surface	--
Weight		approx.120g	approx.65g
Accessories		--	Reflector	--	--

View more detail from the link below

PDF of S-CR series>>
