U-shaped sensors

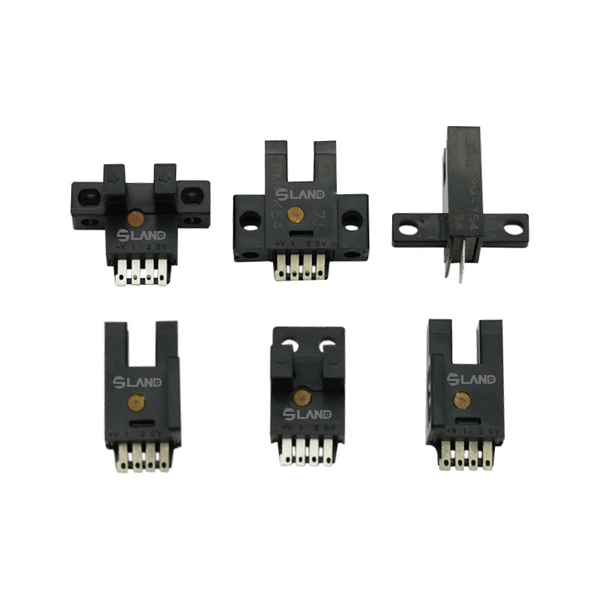

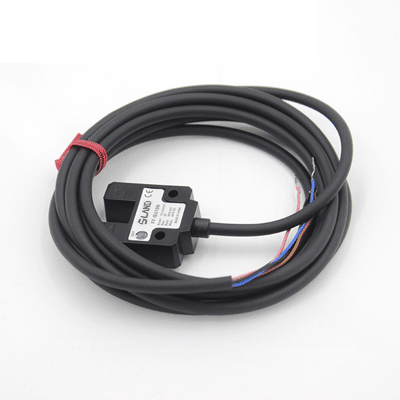

U300 series U shape sensors, 5mm or else slot width, it has different install way to choice, NC.NO together in one sensor, and we can do the connector type that with 150mm pre-cable, it's universal sensor for label, hole, line and so on for detection, we also can customize for customer.

Detailed description

NO and NC in one sensor, 5mm slot;
many install ways to choose;
Low cost and good quanlity, 100% burning test;

Models Guide:

Sketch	Model	Slot Width	OutPut	Wiring
	U302-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U302-P		PNP.NO.NC
	U303-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U303-P		PNP.NO.NC
	U304-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U304-P		PNP.NO.NC
	U305-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U305-P		PNP.NO.NC
	U306-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U306-P		PNP.NO.NC
	U307-N	5mm	NPN.NO.NC	Pre-wire φ2.8*2M/4-wires
	U307-P		PNP.NO.NC
	SU-B3	10mm	NPN.NO.NC	Pre-wire φ4.2×2M/4-wires
	SU-B3P		PNP.NO.NC
	U07-N	7mm	NPN.NO.NC	Pre-wire φ4.2×2M/4-wires
	U07-P		PNP.NO.NC

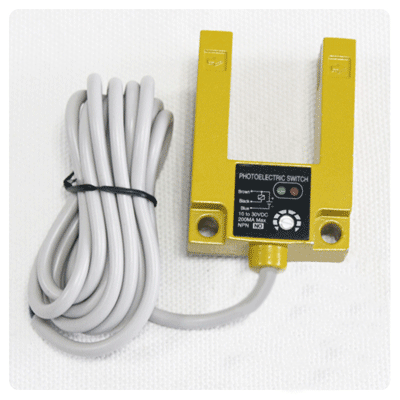

	U30-N	30mm	NPN.NO.NC	Pre-wire φ4.2×2M/4-wires
	U30-P		PNP.NO.NC

These sensors can connector type, and these models add "D" in the end of models, such as "U302-ND"

Specifications:

Emitting light	RedLED：630nm
Operating voltage	DC:10～30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C～+45°C(No freezing allowed )
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C～+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires, φ4.2×2M/3-wires, φ4.2×2M/4-wires
Protection degree	IP64
Weight	Approx.18.5g
