Small rectrangular photocell sensor
  • Small rectrangular photocell sensor

Small rectrangular photocell sensor

S-T/D series Short-circuit protection and reverse polarity protection, sensing range adjustable, even if it is installed around the metal processing machinery where oil mist is scattered, if can be saftly used.
Detailed description


  • 1. Rectangle shape, amplifier built-in, similar to proximity sensor appearance;
  • 2. Small size, suitable for most of applications;
  • 3. Three detection method: Diffsue and Through beam Type;
  • 4. High lighting LED indicator;
  • 5. Short-circuit protection and reverse polarity protection, sensing range adjustable.
  • 6. Even if it is installed around the metal processing machinery where oil mist is scattered, if can be saftly used.


Models Guide:



Sensing Type Head Models

Sensing Method

Sensing Range Weight (g) Outputs
S-D5N Diffuse 50mm Approx.45 NPN.NO.
S-D5P PNP.NO.
S-D10N Retro-Reflective 100mm Approx.45 NPN.NO.
S-D10P PNP.NO.
S-T200N Through-Beam 2m Approx.80 NPN.NO.
S-T200P PNP.NO.

PS: with "N" mean NPN.NO.NC, with "P" mean PNP.NO.NC


Specifications:

Sensing Ways Thr-beam type Diffuse type Diffuse type
Output Method NPN.NO/NC / PNP.NO.NC
Light Source Infrared lights
Ambient Operating Illumination Incandescent lamp: ≦3000Lux ; Sunshine: ≦10000 Lux
Protection loop Reverse polarity protection, short-circuit protection
Operating Voltage 10~30 VDC ±10% (P-P) 10% below
Current Consumption DC: 45mA Max DC: 25mA Max DC: 25mA Max
Load Current 100mA Max
Vibation Resistance 10~55Hz; 1.5mm X,Y,Z direction lasting 2 hours
Shock Resistance 500m/s (Approx.50g) / X,Y,Z direction lasting 2 hours
Residual Voltage ≦1 VDC
Ambient Humidity 35%-85% RH
Operating Temperature -25℃~+55℃ (no-freezing), storage: -30℃~+80℃
Housing PC, PMMA (lens)
Protection Degree IP65

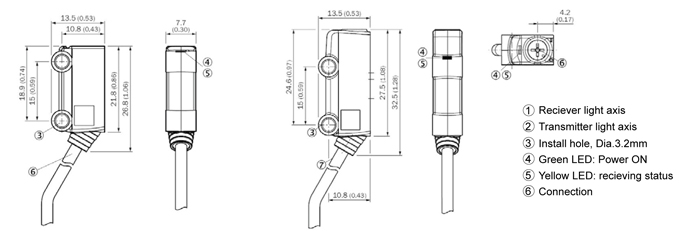

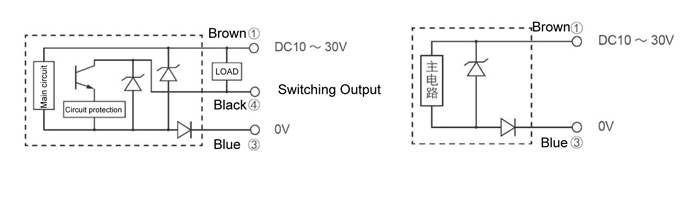

 small rectangular photocell sensor circuitsmall rectangular photocell sensor dimension
